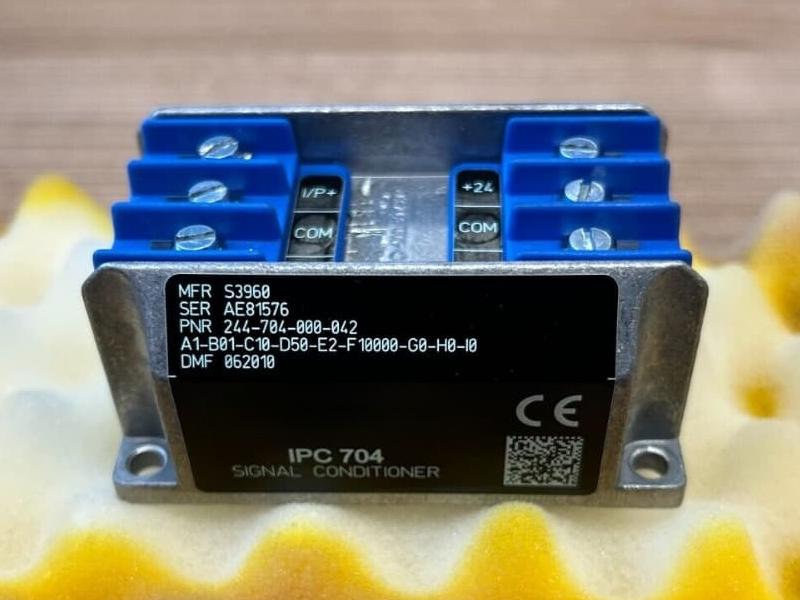

IPC704 244-704-000-042 Signal conditioner

IPC704 244-704-000-042

The IPC704 signal conditioner converts the charge based signal from a piezoelectric-based transducer into a current or a voltage signal. This current or voltage signal is transmitted to the processing electronics via a standard 2-wire or 3-wire transmission cable.

The current modulation technique allows transmission over a distance of up to 1 km. A GSI galvanic separation unit is required for this configuration.

The electronic circuitry of the IPC704 signal conditioner is incorporated into a moulded aluminium enclosure. The signal conditioner has configurable high-pass and low-pass filters and an optional integrator to give a velocity output. Furthermore, RFI filters protect the input and output against radio frequency interference and other electromagnetic influences

KEY FEATURES AND BENEFITS

· For CAxxx piezoelectric accelerometers and CPxxx dynamic pressure sensors

· Configurable high-pass and low-pass filters

· Frequency range: 0.5 Hz to 20 kHz

· Optional integrator to produce a velocity output

· Optional 2-wire current or 3-wire voltage transmission

· Certified for use in potentially explosive atmospheres

· A range of installation options are available

Technical Specifications
