Description

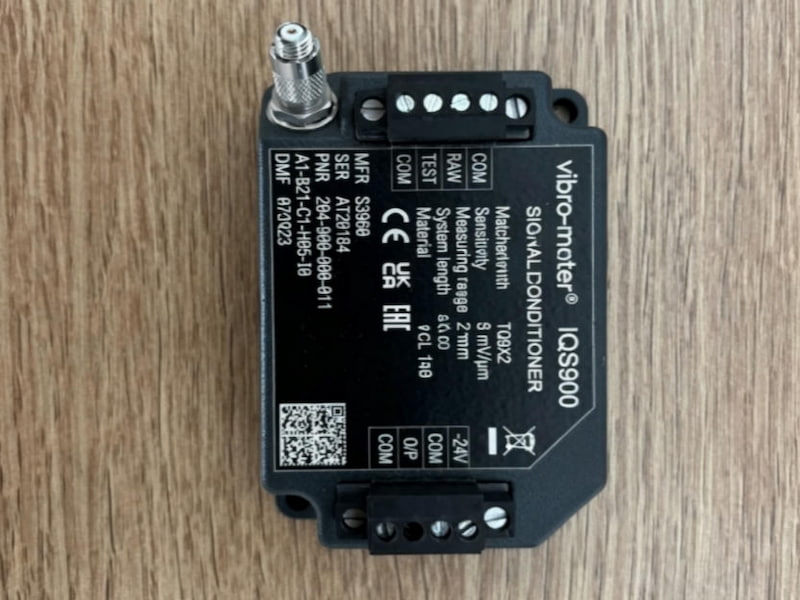

IQS900 (Model 204-900-000-011 A5-B22-C1-H05-I1) is a dedicated signal conditioning unit for the eddy current sensors of the rotating equipment monitoring system. It is compatible with a series of non-contact displacement probes and is used to complete the modulation and demodulation processing of high-frequency signals, converting the shaft relative vibration and shaft clearance displacement signals collected by the probes into standard current or voltage analog quantities, which are then transmitted to the rear monitoring cabinet. It is widely used in equipment protection and precise fault diagnosis scenarios of large-scale units such as steam turbines, compressors, and fans.

This conditioner can be customized at the factory for sensitivity, measurement range, and total cable length, covering a wide frequency measurement range from DC to 20kHz. It supports stable transmission over long cables. This model has a complete line diagnosis function, complies with SIL2 functional safety standards, has explosion-proof certification suitable for flammable and explosive working conditions, is equipped with native test interfaces for on-site calibration, fully follows API 670 industry standards, and can directly replace old signal conditioning equipment without the need to modify the on-site wiring. It can ensure the accuracy and reliability of the measurement data of the unit for a long time.

Features

Special signal conditioning module for vortex probes, used for non-contact measurement of shaft vibration and gap displacement

Wide frequency response range of DC to 20 kHz, with configurable range and sensitivity upon factory setting

Dual output mode: current type suitable for long-distance transmission, voltage type suitable for medium to short-distance wiring

Built-in full-link fault diagnosis, enabling remote monitoring of sensor and cable operating status

Explosion-proof qualification, suitable for deployment in hazardous explosion-proof areas of chemical and oil industries

SIL2 functional safety certification, meeting the requirements for safety interlock monitoring of the unit

Equipped with test and original signal interfaces, supporting on-site offline calibration

Compliant with API 670 Fifth Edition standard, compatible with older measurement kits of the same series

Technical Specifications
