The IQS900 (204-900-000-011 A5-B23-C1-H05-I1) is a signal conditioner for VM600/VibroSmart systems, enabling non-contact shaft displacement measurement via eddy current.
Brand :
VMPart number :
IQS900 204-900-000-011 A5-B23-C1-H05-I1Description :
Signal ConditionerOrigin :
SwitzerlandCondition :
NewDimension :
79.4 mm x 54 mm x 40.5 mmWeight :
200 gPayment :
Bank Transfer
IQS900 204-900-000-011 A5-B23-C1-H05-I1 Signal Conditioner
Features
Signal conditioning for TQ proximity sensors.
Shaft relative vibration and gap/position measurement for machinery protection and/or advanced condition monitoring.
Very wide frequency range (DC to 20000 Hz), with configurable sensitivity and measurement range.
Current output for signal transmission over long distances or voltage output for signal transmission over medium distances.
Certified for use in potentially explosive atmospheres (hazardous areas).
Suitable for use in functional safety contexts: SIL 2 in accordance with IEC 61508 and Cat 1 PL c in accordance with ISO 13849.
Fully compliant with API 670 5th edition.
“Raw” output and “Test” input signals for in-situ test support.
Technical Specifications
| Manufacturer | VM |
| Part Number | IQS900 |
| Ordering Information | 204-900-000-011 A5-B21-C1-H05-I1 |
| Product Catalog | Vibration Monitoring |
| Description | Signal Conditioner |
| Voltage | 24 Vdc |
| Current | 25 mA |

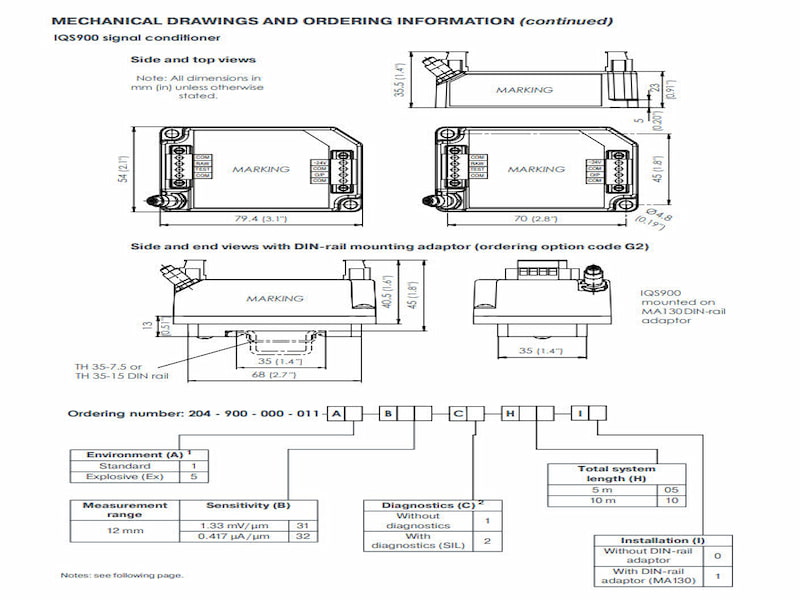

| Dimensions | 79.4 mm x 54 mm x 40.5 mm |
| Weight | 200 g |
