Products
The RLC16 is a Relay Card designed for use in the machinery protection systems and condition and performance monitoring systems.
Brand :
VMPart number :
RLC16 200-570-000-014Description :
Relay CardOrigin :
SwitzerlandCondition :
NewDimension :
262 mm x 20 mm x 125 mmWeight :
0.3 kgPayment :
Bank Transfer

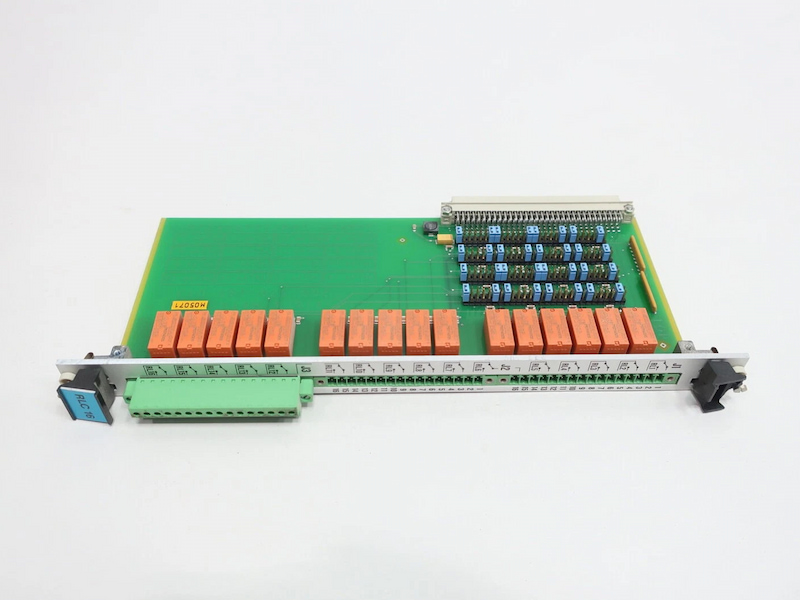

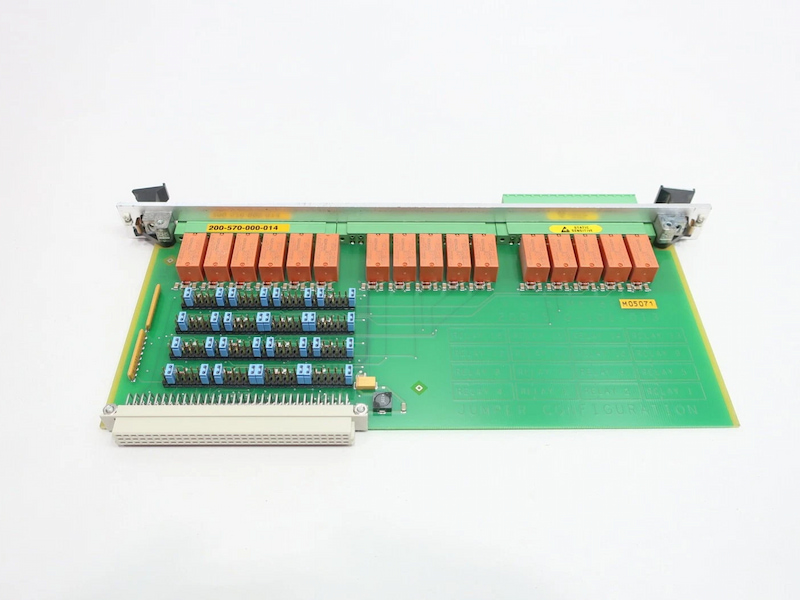

RLC16 200-570-000-014 Relay Card
Functional Description
The RLC16 it's an optional card, for use when the four relays on the IOC4T input /output card are insufficient
for the application and additional relays are required.
The RLC16 is installed in the rear of a rack (ABE04x or ABE056) and connects directly to the rack backplane
via a single connector.
The RLC16 contains 16 relays with change-over contacts. Each relay is associated with 3 terminals on a
screw-terminal connector accessible at the rear of the VM rack.
The relays are controlled by open-collector drivers under software control. Jumpers on the RLC16 card allow
the selection of relay normally energized (NE) or normally de-energized (NDE).
Technical Specifications
| Manufacturer | VM |
| Part Number | RLC16 |
| Ordering Information | 200-570-000-014 |
| Product Catalog | Vibration Monitoring |
| Description | Relay Card |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 262 mm x 20 mm x 125 mm |
| Weight | 0.3 kg |
