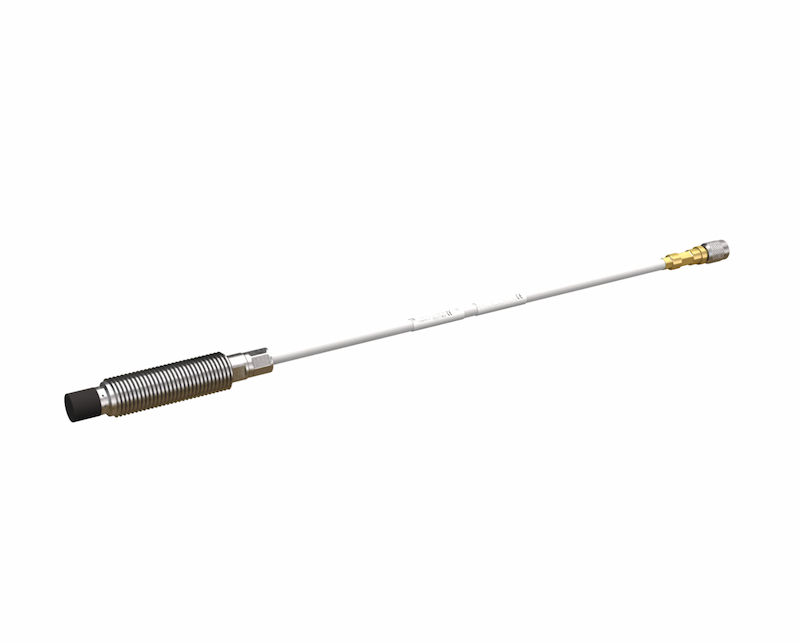

TQ902 111-902-000-011 A1-B1-C50-D2-E1000-F0-G0-H05 Proximity Sensor

TQ902 111-902-000-011 A1-B1-C50-D2-E1000-F0-G0-H05 Proximity Sensor

The TQ902 is a high-quality, high-reliability sensor for use with an EA902 extension cable and IQS900 signal conditioner, which provides either a voltage output or a current output.Please Contact Us For Availability!

  • Brand :

    VM
  • Part number :

    TQ902 111-902-000-011 A1-B1-C50-D2-E1000-F0-G0-H05
  • Description :

    Proximity Sensor
  • Origin :

    Switzerland
  • Condition :

    New
  • Dimension :

    8.2 mm x 1000 mm
  • Weight :

    1 kg
  • Payment :

    Bank Transfer
Contact Us:

TQ902 111-902-000-011 A1-B1-C50-D2-E1000-F0-G0-H05 Proximity Sensor



The TQ902 proximity sensor is a high-quality, high-reliability sensor for use with an EA902 extension cable and IQS900 signal conditioner, which provides either a voltage output or a current output.



The TQ902 is a standard-mount sensor that is designed and built for long-term use in environments characterised by high temperatures and/or hazardous areas (potentially explosive atmospheres).



The active part of a TQ902 proximity sensor is a coil of wire that is moulded inside the tip of the device, made of PPS (polyphenylene sulfide), a high-performance, high-temperature engineering thermoplastic. The sensor body is made of stainless steel. The target material must, in all cases, be metallic.



The TQ902 is intended for standard-mount, sensor bodies are available with metric or imperial threads and have an integral coaxial cable terminated with a self-locking miniature coaxial connector. A TQ902 sensor's integral cable and the EA902 extension cables are available in various lengths, which can be combined to obtain a particular total system length (TSL) for an application.



Optional interconnection protectors (IP172), junction boxes (JB118) and other housings are available for the mechanical and environmental protection of the connection between a TQ902 sensor's integral cable and a EA902 extension cable.



Features



· Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans

· 2 or 4 mm measurement range (Ø8.2 mm sensor)

· −40 to 180 °C operating temperature, IP68 protection rating

· 0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable

· Versions certified for use in potentially explosive atmospheres

· Conforms to API 670 5th edition



Technical Specifications

Manufacturer VM
Part Number TQ902
Ordering Information 111-902-000-011 A1-B1-C50-D2-E1000-F0-G0-H05
Product Catalog Vibration Monitoring
Description Proximity Sensor
Voltage 24 Vdc
Current 25 mA
Dimensions 8.2 mm x 1000 mm
Weight 1 kg



TQ902

100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
