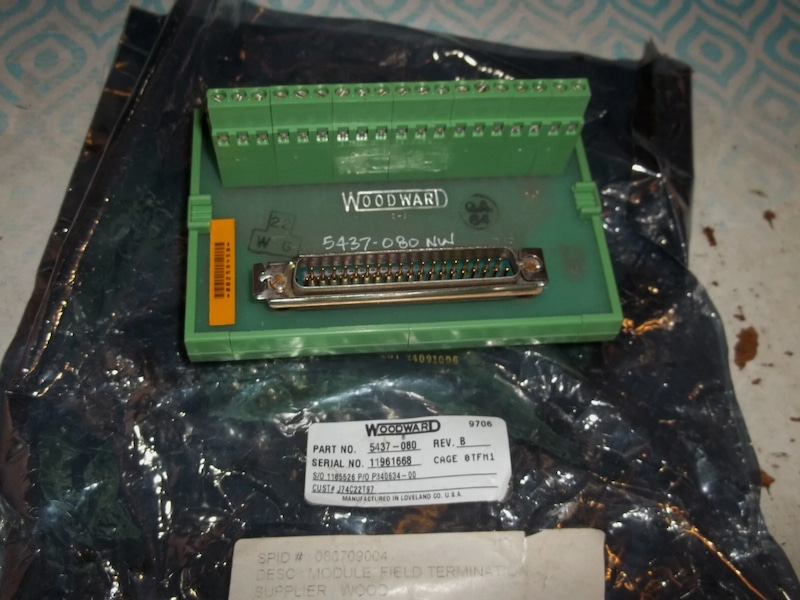

Woodward 5437-080 NetCon Field Terminal Module

Woodward 5437-080 NetCon Field Terminal Module

Functional Description

5437-080 is a NetCon Field Terminal Module manufactured and designed by Woodward as part of the 5400 Series used in Turbine Control Systems. It is a block connection terminal component with a 37-pin connector. Field Termination Modules (FTM) are used to connect field wire to the front of the I/O Modules of the MicroNet control. They connect to the I/O modules' subminiature D-type connectors on the front and provide cage-clamp terminal connection points for field wiring. In addition, they provide shield termination and EMI protection. All FTMs can be placed on 35 mm DIN Rails and serve as terminal blocks for field wiring. This Relay module is discontinued by the manufacturer. Contact WOC for availability and more details.

Features

• Relay Modules: Built with precision, this terminal is exclusively designed to cater to the connectivity needs of relay modules. Its thoughtful engineering ensures that it is perfectly suited for establishing secure and reliable connections with relay-based systems.
• 37-Pin Connector: The terminal features a 37-pin connector configuration, offering a versatile and extensive platform for establishing connections. This comprehensive pin layout accommodates various relay module configurations and supports a wide array of control signals.
• Precision Relay Control: The core objective of this terminal is to enable precise control over relay modules. Optimizing the connection interface, enhances the efficiency and accuracy of control signal transmission, ensuring that relay operations are executed with the utmost precision.
• Modular Adaptability: With a modular design, the terminal's adaptability shines through. Its design allows it to seamlessly integrate into a variety of relay module setups, offering a standardized interface for efficient relay control and management across diverse applications.
• Robust Industrial Build: Crafted to endure challenging industrial environments, this terminal boasts a robust build that can withstand the rigors of demanding conditions.

Technical Specifications
