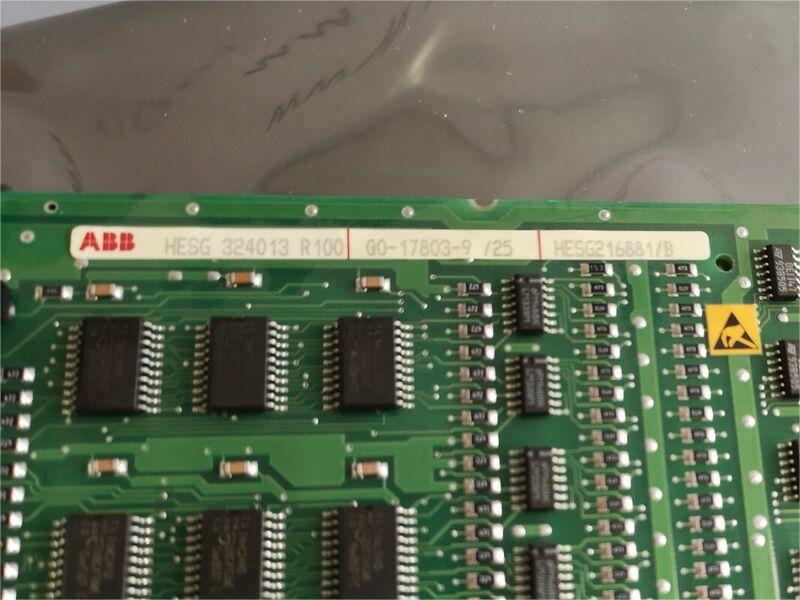

ABB 216AB61 HESG324013R100 Digital Output Unit

216AB61 HESG324013R100 Digital Output Unit

Functional Description

The 216AB61 output unit transfers signals generated by the activated protection functions to the auxiliary relays K1...K16 in the 216GA61 O/P relay unit for purposes of remote signalling.

The unit has 32 O/P channels, i.e. a single 216AB61 unit can control two 216GA61 O/P relay units.

· connector "a" (upper) : channels CHO01...CHO16

· connector "b" (lower) : channels CHO17...CHO32

If there are several 216AB61 units in a system, the O/P channels are designated within the system according to Table 2.1.

O/P channels CHO01 and CHO02 of the first 216AB61 unit in a system are reserved for system alarm signals.

· CHO01 : Stand-by (general alarm line SML); active during normal fault-free operation.

· CHO02 : No system defect (stand-by signal line CK); active during normal operation.

Features

• 32 outputs for controlling the relays of the output auxiliary relay assembly

• Short-circuit proof

• Front plate LEDs for indication of activated relays

• Space requirement: one rack division.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
