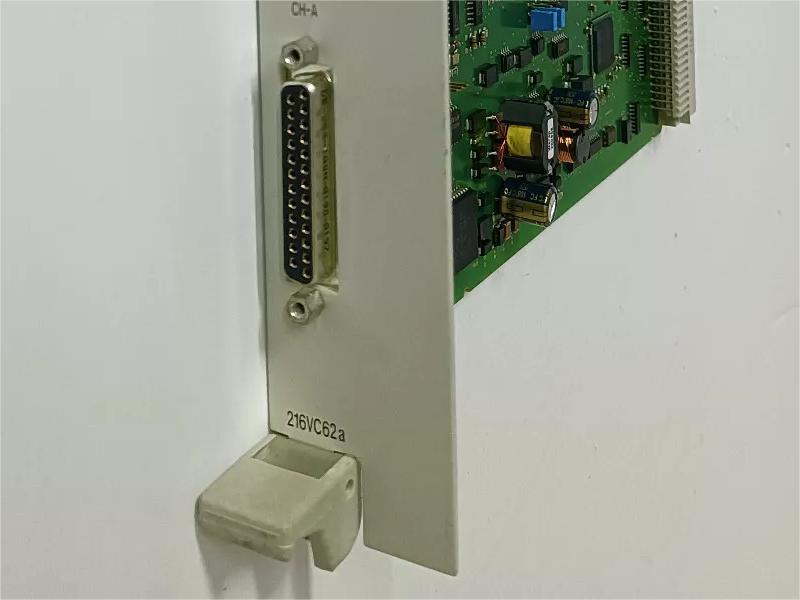

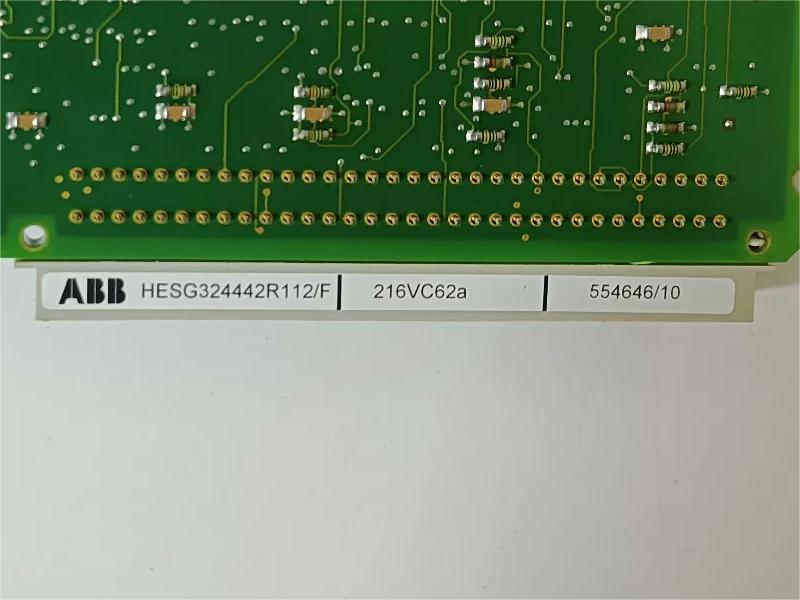

ABB 216VC62A HESG324442R112/F Processor Unit

216VC62A HESG324442R112/F Processor Unit

Functional Description

The processing unit 216VC62a has a computing capacity of 425%.

The 216VC62a is used both as a processor and as an interface to the interbay bus (IBB) in the substation monitoring system (SMS) and the substation automation system. The available communication protocols are:

· SPA BUS

· LON BUS

· MCB inter bay bus

· MVB process bus

The SPA BUS interface is always available. The LON and MVB protocols are transferred by PC cards.

The supply to the memory in the 216VC62a is maintained in the event of an interruption by a gold condenser so that the event list and disturbance recorder data remain intact. The disturbance recorder data can be read via either the interface on the front of the 216VC62a or the object bus. The data can be evaluated using the “EVECOM” evaluation program. The internal clock of the RE. 216 can be synchronised via the object bus interface of SMS/SCS systems orby a radio clock.

I/P signals (channels) from the B448C bus:

· digitised measured variables: primary system currents and voltages

· logic signals: external I/P signals

· 24 V auxiliary supply and data exchange with the B448C bus.

O/P signals (channels) to the B448C bus:

· signal O/P's from the protection and logic functions selected

· tripping O/P's from the protection and logic functions selected

· data exchange with the B448C bus.

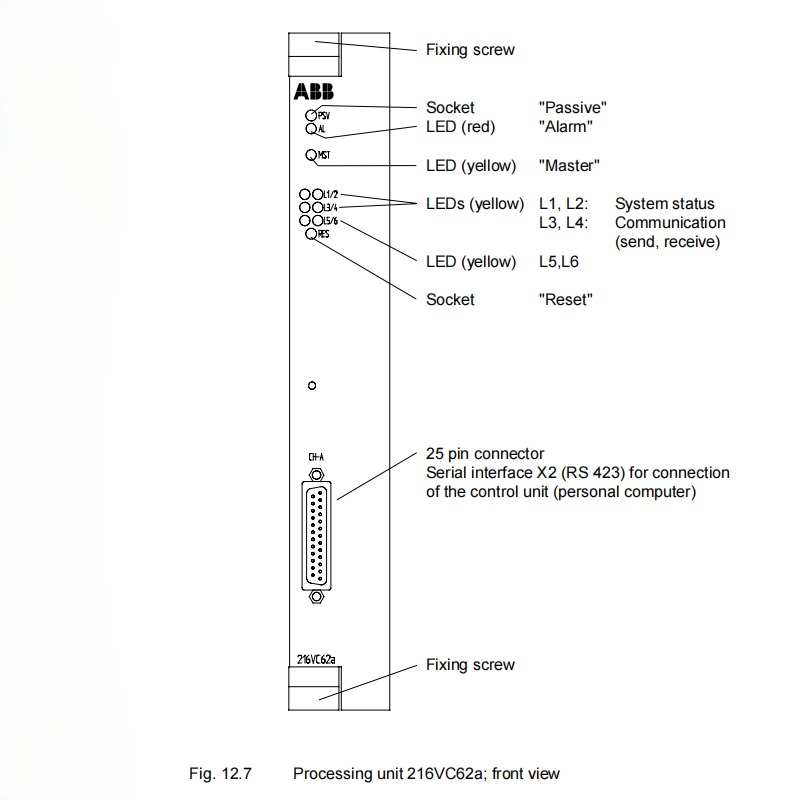

Front plate signals and controls

Features

• 32 bit processor type 80486DX-2

• Application software on Flash EPROM

• Operating data on RAM

• Settings on non-volatile Flash EPROM

• Potential-free RS-423 interface for PC operation

• Connection to the station control with transmission of messages

• Time clock synchronizing for time-tagging of events

• Non-volatile event and disturbance memory (gold capacitor buffered)

• Space requirement: two rack divisions

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
