The 5SHX2645L0004 (3BHL000389P0104) is an IGCT power module for medium-voltage drives and power conversion.
Brand :
ABBPart number :
5SHX2645L0004 3BHL000389P0104Description :
IGCT ModuleOrigin :
SwitzerlandCondition :
NewDimension :
252 mm x 273 mm x 40 mmWeight :
2 kgPayment :
Bank Transfer

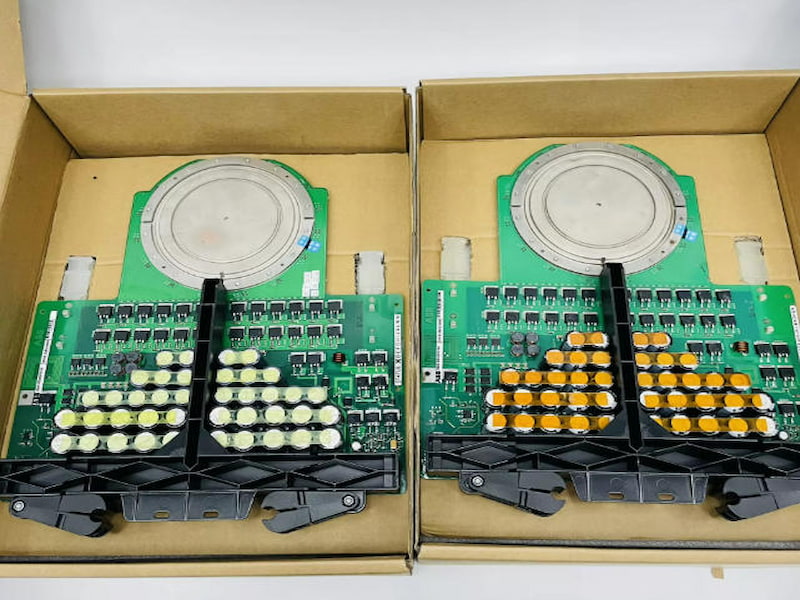

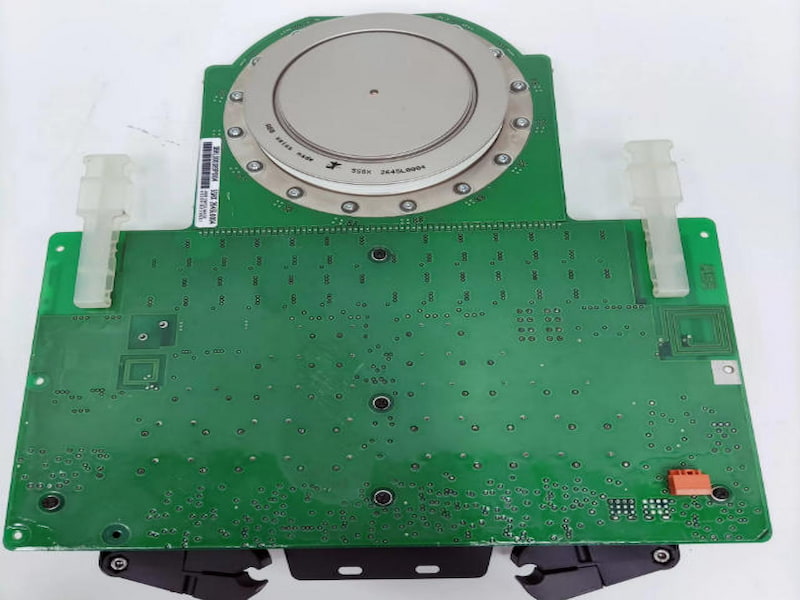

ABB 5SHX2645L0004 3BHL000389P0104 IGCT Module
Description
ABB 5SHX2645L0004 (3BHL000389P0104) is an ABB high-performance IGCT power module, specially designed for medium-voltage transmission and power conversion scenarios. It is a core semiconductor device for industrial high-power control.
This module features a high breakdown voltage and large current carrying capacity. It adopts a crimping-type packaging and is compatible with liquid cooling for heat dissipation. It has low on-state loss and is resistant to vibration. It can operate stably for a long time in harsh conditions such as power, metallurgy, and rail transportation.
Features
Model: 5SHX2645L0004, Part Number 3BHL000389P0104
Type: Integrated Gate Turn-Off Thyristor (IGCT) Power Module
Performance: 4500V Breakdown Voltage, 4000A Rated Current
Design: Snap-fit Structure, Supports Direct Liquid Cooling, Vibration Resistance up to 5g
Features: Low On-State Loss, Precise Switching Control, Industrial-grade High Reliability
Applications: Medium Voltage Frequency Converter, HVDC, Industrial Drive, Power System
Technical Specifications
| Manufacturer | ABB |
| Part Number | 5SHX2645L0004 |
| Ordering Information | 3BHL000389P0104 |
| Product Catalog | 5SHX Series |
| Description | IGCT Module |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 170 mm x 180 mm x 120 mm |
| Weight | 2 kg |
