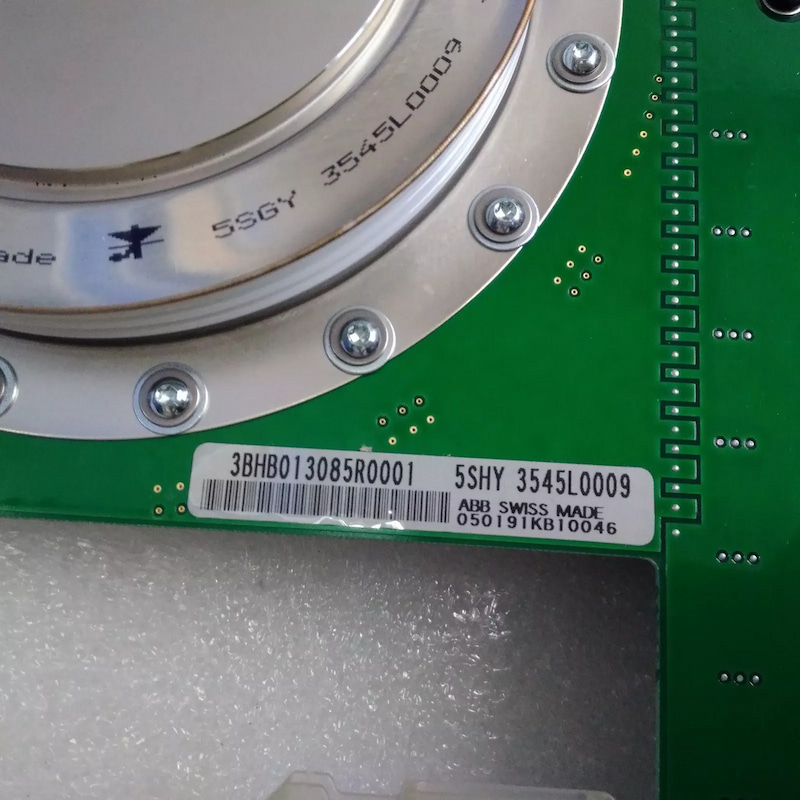

ABB 5SHY 3545L0009 3BHB013085R0001 IGCT Module

5SHY 3545L0009 3BHB013085R0001 IGCT Module

Functional Description:

5SHY 3545L0009 is a IGCT Module manufactured and designed by ABB as part of the spares used in the drive system.

The Integrated Gate-Commutated Thyristor (IGCT) was introduced about 15 years ago and has established itself as a preferred solution for a number of high power electronics applications. These applications have in common that the rated power level is in the megawatts (MW) and they range from industrial drives and track-side supplies to power quality and high-current breakers.

Features:

· Available as asymmetric and reverse conducting (with integrated diode)

· Voltage ratings 4,500 up to 6,500 V with current ratings of 520 up to 5,000 A of peak turn-off current

· Integrated gate unit - critical to device performance

· Low on-state losses

· Press-pack design for efficient double sided cooling

· Press-pack design for high load cycling capability

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
