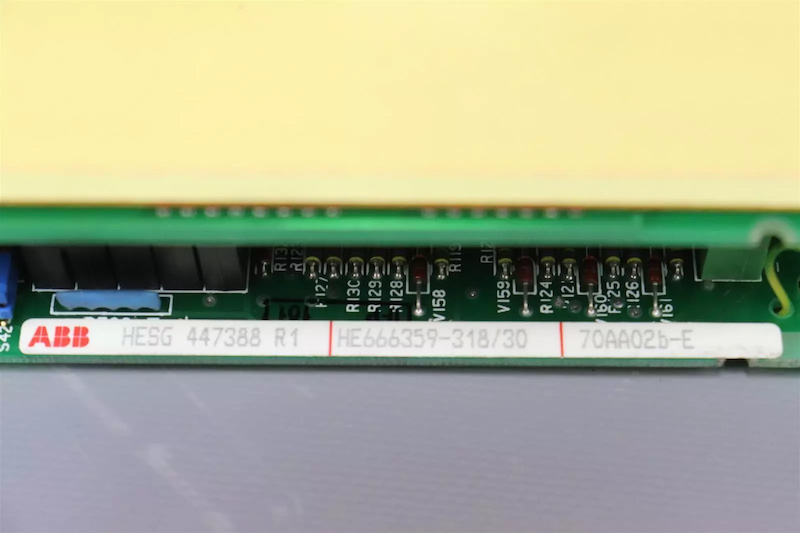

ABB 70AA02b-E HESG447388R0001 Output Module for Currents

70AA02b-E HESG447388R0001 Analog Output Module

Functional Description

The 70AA02b-E is a Analog Output Module, manufactured and designed by ABB as part of the P13 Series used in the ABB PROCONTROL P system.

The core of the P13 analog output modules is the custom local bus UART and digital signal processing engine. The core interfaces four independent digital to analog front end circuits. Each of these analog outputs utilizes precision signal conditioning and advanced sigma delta based technology or DAC sections with a ladder network to produce current or voltage loop outputs with 16 bit resolution and monotonicity.

Using the front panel configuration port and the P13 Configurator software, the modules can be monitored and configured for different applications.

The 70AA02 Output Module for Currents, it serves for the output of analog signals from the PROCONTROL P13 local bus. The 4 output channels may be configured to supply the following current signals:

> 0 mA to +20 mA (corresponding to 0 % to +100 %)

>+4 mA to +20 mA (corresponding to 0 % to +100 %)

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
