ABB 70BK03b-ES HESG447271R2 Coupling Module

70BK03b-ES HESG447271R2 Coupling Module

This coupling module is used for serial process data transfer between a PROCONTROL P station and the PROCONTROL-PS protection system.

The coupling function requires the following modules:

87TS01-E/R1239   PROCONTROL P coupling module

70BK03-E/R1         PROCONTROL-PS coupling module

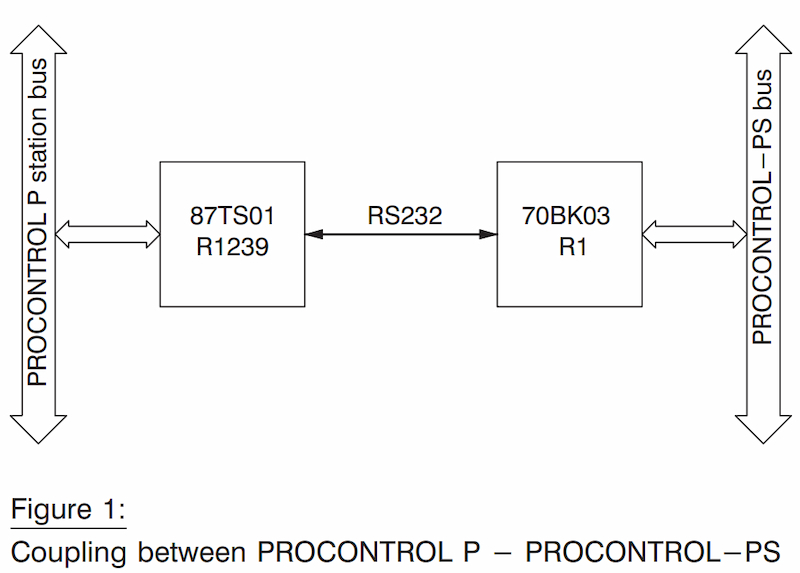

These modules are used always in pairs (see Figure 1). The 87TS01/R1239 module is used on the PROCONTROL P station bus, the 70BK03/R1 module on the PROCONTROL-PS bus. Both modules are  interconnected by a cable.

Data transfer is in both directions. Both modules equally participate in serial data exchange.

The module may be plugged into any station of the PROCONTROL bus system with redundant 24 V module supply (from 89MS01/R0200 or 89MS02/R0100). It is provided with a standard interface to the PROCONTROL station bus.

The 70BK03b-ES module is equipped with a standard interface for the PROCONTROL-PS bus.

Data exchange with the 70Bk03 module takes place through a serial module interface according to RS232 at 19200 baud, and according to the PROCONTROL-PS protocol. For cable connection to the 87TS01/R1239, front connector X1 or X2 is used; for the 70BK03/R1, front connector X7 is used.

Technical Specifications
