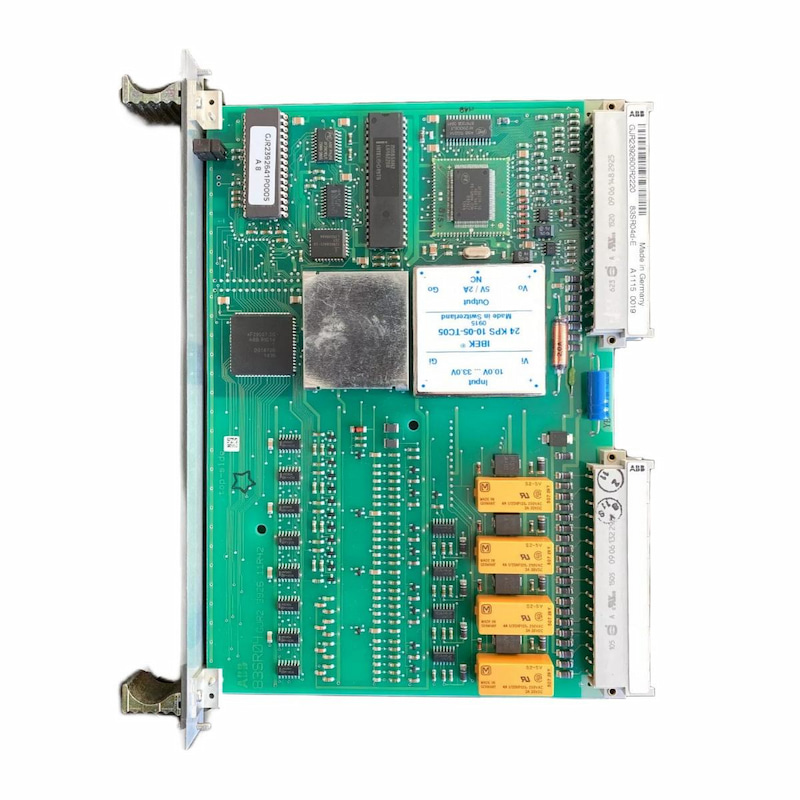

ABB 83SR04B-E GJR2390200R1411 Control Module

83SR04B-E GJR2390200R1411 Control Module

Application

The 83SR04B-E control module is used for stored-program binary control tasks for protection purposes.

It can be used for the following applications:

- Binary control for boiler protection

- Function group control (sequential control)

This module is intended to be used in conjunction with the process operator station.

It can be applied for the following operating mode:

- Binary control mode (and analog basic functions) with variable cycle time

The operating mode is set with function block TXT1 which is listed as the first element of the structure.

For binary control applications, up to 4 function group control circuits or 4 drive control circuits or combined drive and group control circuits per module can be implemented (the module cycle time has to be taken into account).

The module uses four 2–fold hardware interfaces (8 outputs) for the relay output modules or four 4–fold hardware interfaces (16 inputs) for the process.

Features

- The 83SR04B-E control module address is set automatically by plugging the module into the PROCONTROL station.

- The telegrams received over the bus are checked by the module for error-free transmission by their parity bit.

- The telegrams sent from the module to the bus are given parity bits.

- The user program is stored on a nonvolatile memory (EEPROM). Loading and changing the user program takes place on-line over the bus.

- The module is ready for operation when a valid user list has been loaded.
