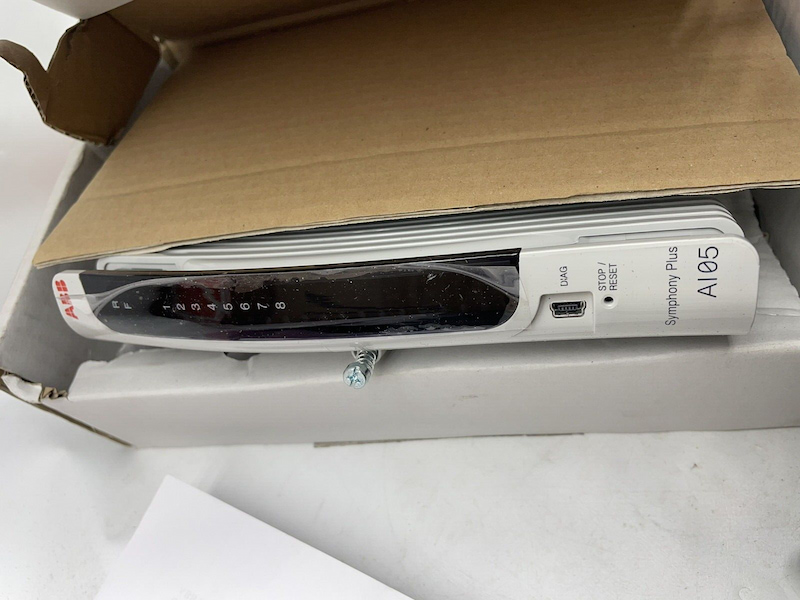

ABB AI05 HART Analog Input Module

For the best price on AI05, please contact us and we will get back to you within 24 hours. Topteng Technology understands the importance of your needs and is committed to minimizing lead times.

Brand :
ABB
Part number :
AI05
Description :
HART Analog Input Module
Origin :
USA
Condition :
New
Dimension :
51 mm x 190 mm x 138 mm
Weight :
0.4 kg
Payment :
Bank Transfer

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

SD Series I/O modules

The AI05 HART Analog Input module processes up to 8 high level analog

field inputs for a Symphony Plus controller. The controller uses function

code 221 (I/O Device Definition) to configure the module, and function

code 222 (Analog In/Channel) to configure and access each module input

channel. Each channel can be individually programmed for current or

voltage inputs.

Comparing to AI02, the AI05 module provides higher performance with additional features of individual channel isolation ,dedicated HART modem and A/D converter per channel. AI05 supports up to 32 secondary variables.

The AI05 can be used with HBS01-FPH, HBS01-FPN or HBS01-EPD base.

Technical data

Power requirements (logic power) Operating voltage Current	24 VDC ± 12%, -10% 100 mA typical
Power requirements (IO power) Operating voltage Current	24 VDC ± 10% 20 mA / channel
Channels	8 independently configured channels
Analog input Current Voltage	4 to 20 mA 1 to 5 VDC
HART function Number of HART modem Number of HART Secondary Variables HART Secondary variable update rate	HART function is designed to work under current mode only 1 modem per channel, total 8 Up to 4 per channel, 32 per module 650 milliseconds typical, 750 milliseconds maximum
A/D conversion Resolution Conversion update rate	1 A/D converter 12 bit 100 ms for all channels
Operating temperature	-20° to 70°C (-4° to 158°F). Tested according to IEC/EN 60068-2-1, IEC/EN 60068-2-2
Service port	1 mini-USB port
Dimensions (with base)	51mm width, 190 mm height, 138 mm depth (2 in. width, 7.48 in. height, 5.43 in. depth)
Weight	0.4 kg

Warranty : We offer one year warranty for all original new product.

Delivery : We will choose the DHL/FEDEX/TNT/UPS.

Payment : 100% advance payment bank wire transfer.

Returns : Quality problems can be replaced within 15 working days from the date of receipt of the product, repair services can be provided within 1 year.

Please contact us to get the product manual.
