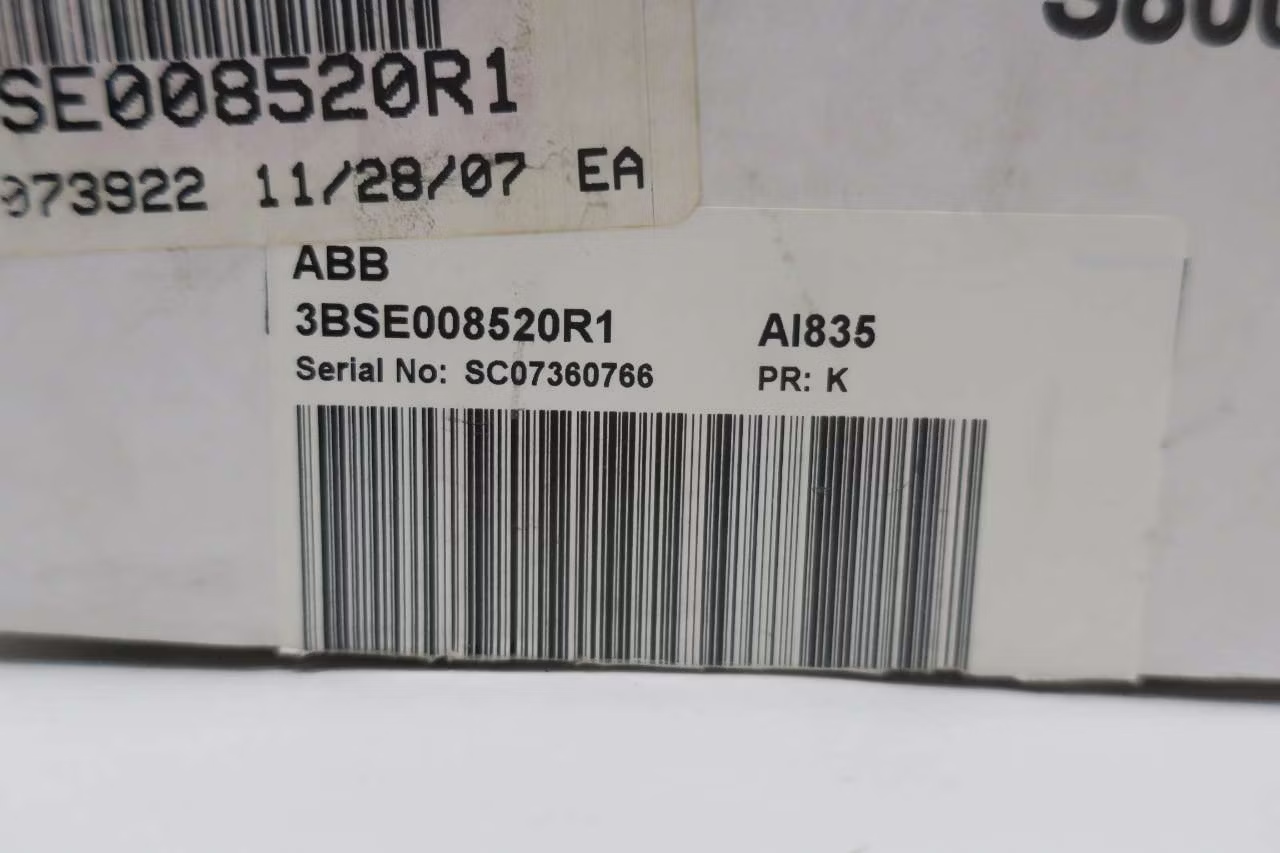

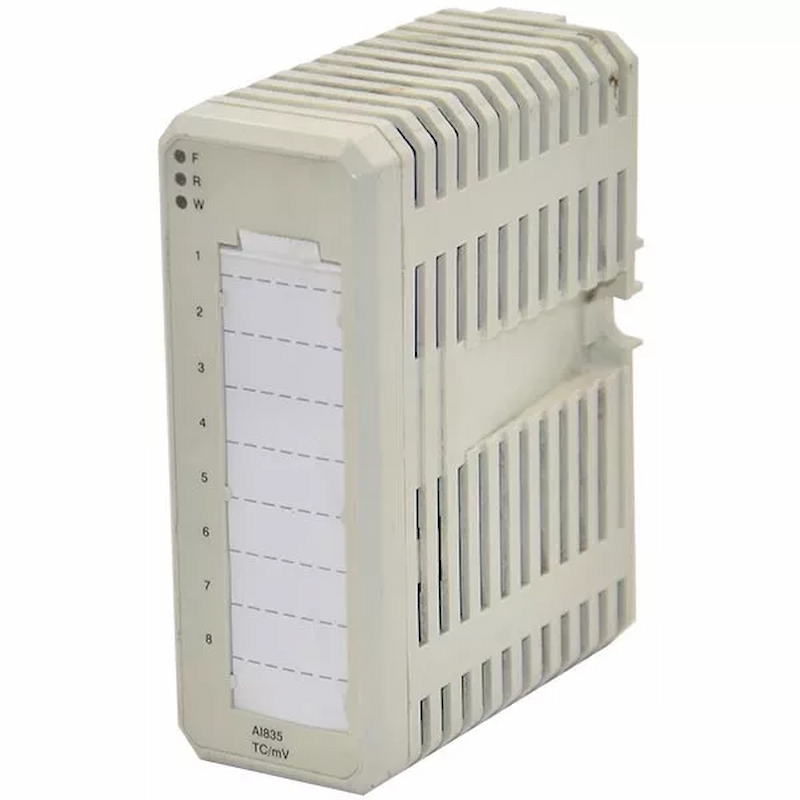

ABB AI835 3BSE008520R1 Analog Input Module

ABB AI835 3BSE008520R1 Analog Input Module

AI835 - Analog Input Module is available in stock and ready for ship. The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, N, R, S and T, for AI835A also D, L and U.US$500.00

  • Brand :

    ABB
  • Part number :

    AI835 3BSE008520R1
  • Description :

    Analog Input Module
  • Origin :

    Sweden
  • Condition :

    New
  • Dimension :

    150 mm x 75 mm x 75 mm
  • Weight :

    0.2 kg
  • Payment :

    Bank Transfer
Contact Us:



AI835

ABB Ability™ System 800xA® hardware selector


The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable  per channel are: -30 mV to +75 mV linear, or TC Types B, C, E,J, K, N, R, S and T, for AI835A also D, L and U. One of the channels (Channel 8) may be configured for “Cold Junction”(ambient) temperature measurements, thus serving as CJ channel for Ch.1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device. Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or for AI835A also from the application. Channel 8 may be used in the same manner as Ch.1...7 when no CJ temperature measurement is needed.




Features and benefits

· 8 differential input channels for thermocouple/mV.

· Channel 8 can be designated as the CJ-channel (4-wire Pt100 RTD).

· Variety of thermocouples with the following characteristics: B, C, E,J, K, N, R, S and Tfor AI835A also D, L and U.

· 15 Bitresolution (A/D).

· Inputs are monitored for wire-break open-circuit.


Technical Specifications

Manufacturer ABB
Part Number AI835
Ordering Information 3BSE008520R1
Product Catalog S800 I/O Modules
Description Analog Input Module
Input impedance
> 1 MΩ
Rated insulation voltage
50 V
Dielectric test voltage
500 V a.c.
Power dissipation
1.6 W
Currentconsumption +5 VModulebus
75 mA
Currentconsumption +24VModulebus
50 mA
Front LED's
F(ault), R(un), W(arning)
Dimensions
150 mm x 75 mm x 75 mm
Weight
0.2 kg

ABB AI835



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
