The HIEE300936R0101 is a signal interface board for ABB industrial control systems for data acquisition and signal processing.
Brand :
ABBPart number :
HIEE300936R0101Description :
MAIN CURCUIT INTERFACE BOARDOrigin :
FinlandCondition :
NewDimension :
170 mm x 180 mm x 120 mmWeight :
0.3 kgPayment :
Bank Transfer

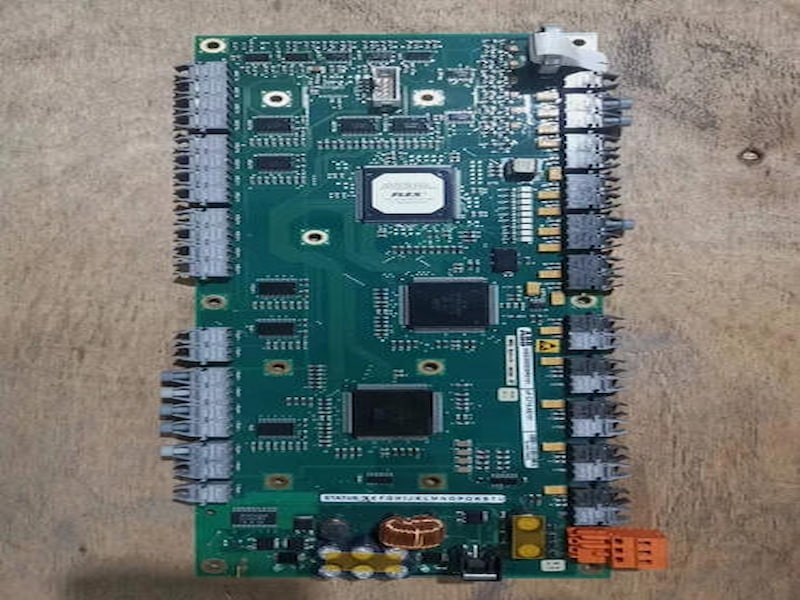

ABB HIEE300936R0101 MAIN CURCUIT INTERFACE BOARD
Description
ABB HIEE300936R0101 (UFC718AE101) is a high-performance signal interface board of the ABB UFC700 series, which is compatible with ACS800/ACS6000 medium-voltage drive systems and AC 800F PLC systems. Its core function is to collect on-site signals, process data, and facilitate communication between devices, enabling reliable data exchange between the control layer and the field layer.
This interface board adopts industrial-grade PCB and enhanced anti-interference design, capable of withstanding wide temperature and vibration conditions; it integrates multi-channel signal conditioning and fast data forwarding capabilities, supports various industrial protocols, has a compact structure and is easy to install, and can be seamlessly integrated into the automation system to ensure stable signal transmission and efficient execution of control logic.
Features
Model: HIEE300936R0101 (UFC718AE101), Type: UFC700 Series Signal Interface Board
Compatible Systems: ABB ACS800/ACS6000 Medium Voltage Drive, AC 800F PLC, Industrial DCS System
Core Functions: Multi-channel signal acquisition, data processing, protocol conversion, inter-device communication interconnection
Communication Support: Compatible with mainstream industrial protocols such as Modbus, EtherCAT, etc., suitable for multi-device connection
Electrical Characteristics: 24V DC power supply, high-precision signal sampling, strong anti-electromagnetic interference capability
Environmental Tolerance: Operating temperature range of -40°C to +85°C, suitable for harsh industrial site conditions
Structural Design: Compact standard size, standard interfaces, supports rapid installation and maintenance-free replacement
Technical Specifications
| Manufacturer | ABB |
| Part Number | HIEE300936R0101 |
| Ordering Information | HIEE300936R0101 |
| Product Catalog | Connection Unit |
| Description | MAIN CURCUIT INTERFACE BOARD |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 170 mm x 180 mm x 120 mm |
| Weight | 0.3 kg |
