The HIEE401782R0001 is a high voltage interface module for ABB industrial control systems signal isolation and conversion.
Brand :
ABBPart number :
HIEE401782R0001Description :
LTC391AE01 High Voltage Interface ModuleOrigin :
SwitzerlandCondition :
NewDimension :
170 mm x 180 mm x 120 mmWeight :
0.5 kgPayment :
Bank Transfer

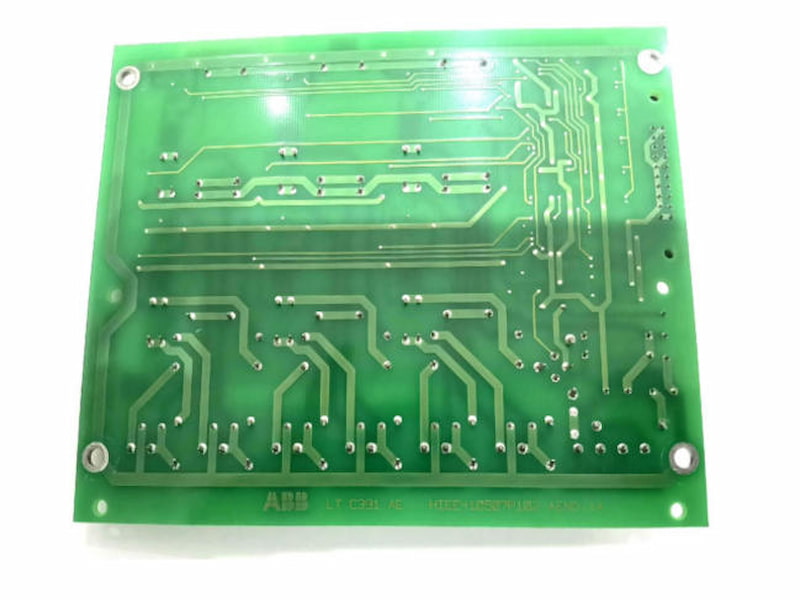

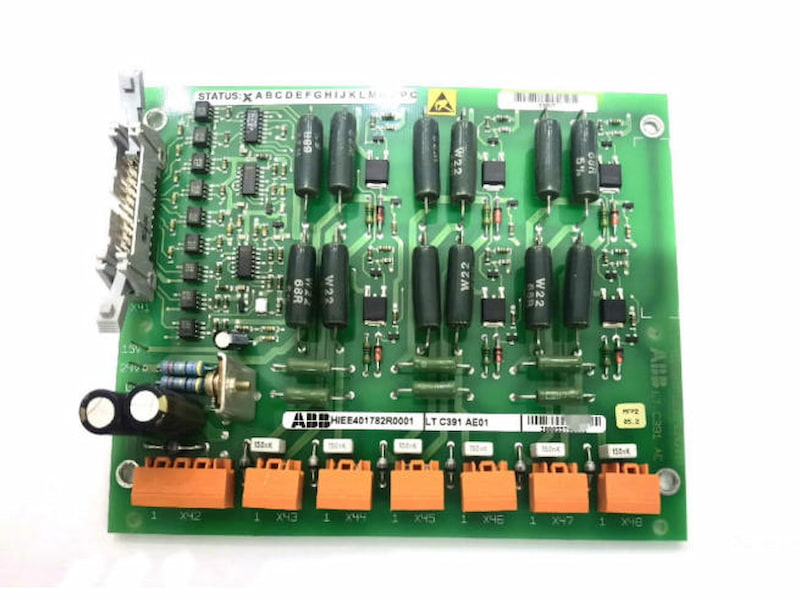

ABB HIEE401782R0001 LTC391AE01 High Voltage Interface Module
Description
ABB HIEE401782R0001 (LTC391AE01) is a high-voltage interface module specifically designed for ABB's industrial drive and process control systems. As an isolation bridge between the high-voltage side and the control side, it is responsible for high-voltage signal acquisition, electrical isolation, and level conversion, ensuring the safe connection of the low-voltage control unit to the high-voltage circuit.
This module features a high-voltage withstand isolation design, with strong electromagnetic compatibility and anti-interference capabilities. The industrial-grade rugged circuit board is adapted to harsh conditions, featuring a compact structure, standard slot installation, integrated fault monitoring and status indication, and can operate stably for a long time in scenarios such as power, metallurgy, and high-voltage frequency conversion.
Features
Model: HIEE401782R0001 (LTC391AE01), Type: High Voltage Isolation Interface Module
Compatible Systems: ABB Industrial Drive, High Voltage Frequency Converter, Process Control and Excitation System
Core Functions: High Voltage Signal Isolation, Level Conversion, Data Acquisition, Overvoltage Protection
Isolation Performance: High Voltage Electrical Isolation, Suppression of Common Mode Interference, Ensuring System Safety
Electrical Characteristics: 24VDC Power Supply, Channel Isolation, Overvoltage / Overcurrent Protection
Environmental Tolerance: -20°C to + 60°C, Resistant to Vibration, Good Electromagnetic Compatibility
Installation and Maintenance: Standard Slot Installation, LED Status Indication, Facilitating Quick Maintenance
Technical Specifications
| Manufacturer | ABB |
| Part Number | HIEE401782R0001 |
| Ordering Information | HIEE401782R0001 |
| Product Catalog | Connection Unit |
| Description | High Voltage Interface Module |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 170 mm x 180 mm x 120 mm |
| Weight | 0.5 kg |
