The NGPS-02C is a power supply board used to ACS6000 MD Drive System.
Brand :
ABBPart number :
NGPS-02C 64008587DDescription :
Power Supply BoardOrigin :
FinlandCondition :
NewDimension :
16 cm x 8 cm x 4 cmWeight :
0.1 kgPayment :
Bank Transfer

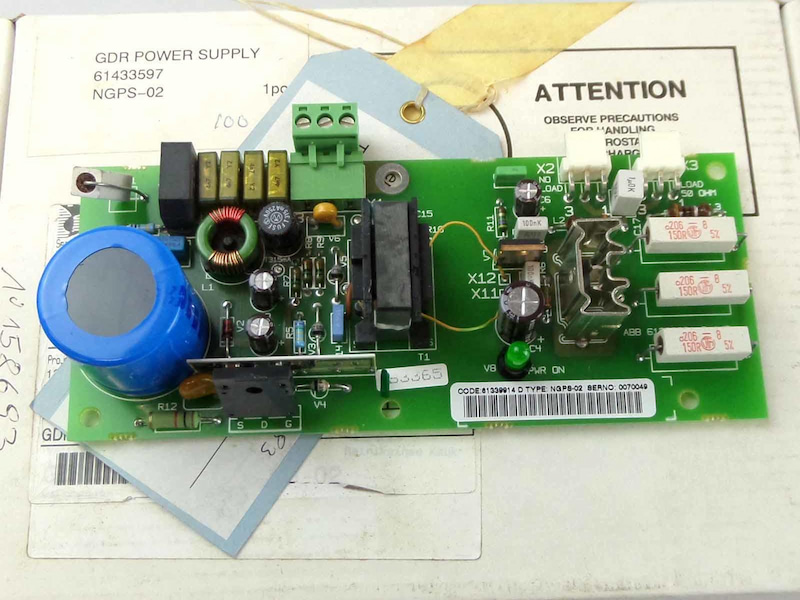

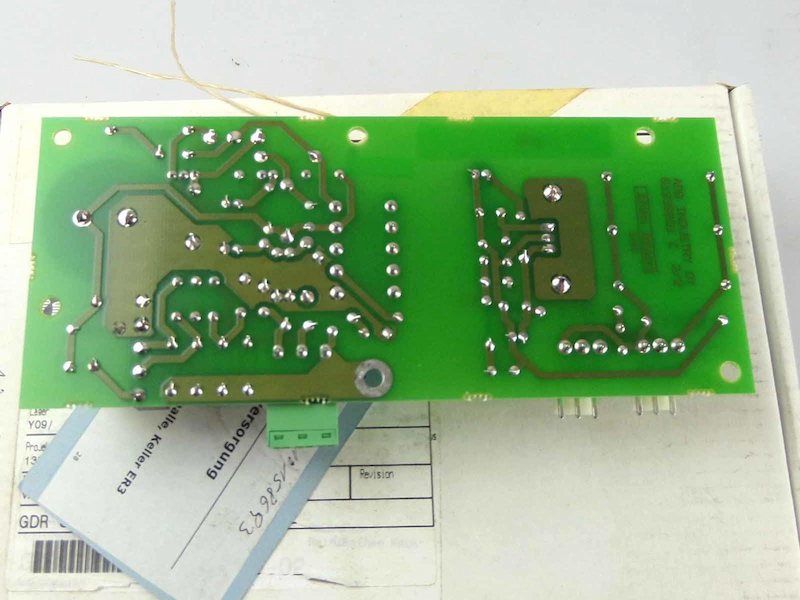

ABB NGPS-02C 64008587D Power Supply Board
Functional Description
Inverter modules equipped with the Prevention of Unexpected Start option have an additional board (NGPS)
fitted. This board provides the control voltage for the output stage of the inverter module. The NGPS
board in turn is powered from the 230/115 V AC auxiliary power circuit via a normally-closed switch installed
by the customer in a suitable location (for example, a control desk). By opening this switch, the operator can
block the control voltage to the inverter power stage, so the voltage needed to rotate the motor cannot be
generated.
In addition to the switch, a relay is to be connected in parallel with the power input of the NGPS board. A
normally-open contact of this relay is wired to a digital input of the inverter unit. (This is to prevent
erroneous control of the power stage and possible damage in case the switch is opened while the inverter is
running.)
Technical Specifications
| Manufacturer | ABB |
| Part Number | NGPS-02C |
| Ordering Information | 64008587D |
| Product Catalog | ACS6000 MD Drive System |
| Description | Power Supply Board |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 16 cm x 8 cm x 4 cm |
| Weight | 1 kg |
