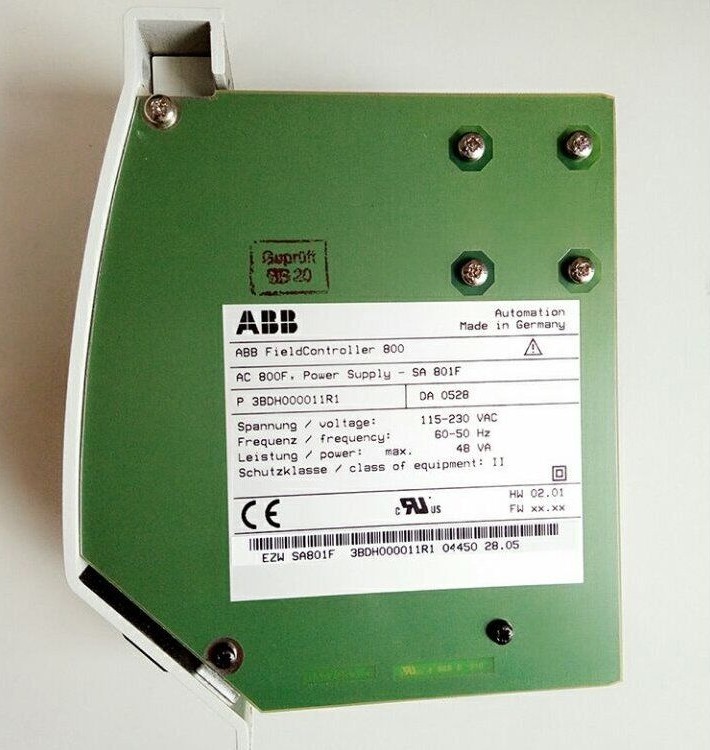

ABB SA801F 3BDH000011R1 Power Supply

Description

The AC 800F modules are supplied with 5 V DC / 5 A and 3.3 V DC / 5 A auxiliary power by the SA 801F or 5 V DC / 5.5 A and 3.3 V DC / 6.5 A by the SA 811F power supply. The power supply has open-circuit, overload and sustained short-circuit protection. The electronically controlled output voltage provides high stability and low residual ripple.

In case of power loss ≥5 ms, the power supply module generates a power-fail signal. This signal is used by the CPU module to shut down operations and enter to a safe state. This is required for a controlled restart of the system and the user application when power is restored. The output voltage remains within its tolerance limits for at least another 15 ms. Altogether a mains voltage drop of 20 ms will be managed.

Features





· Input voltage 115 - 230 VAC (self adjusting), output is electrically isolated





· Power supply outputs provide:



   SA 801 F: 5 V DC / 5 A and 3.3 V DC / 5 A

   SA 811 F: 5 V DC / 5.5 A and 3.3 V DC / 6.5 A





· Enhanced power-fail prediction and shutdown procedures





· LED indication for power supply status and operating status of the AC 800F





· Short circuit proof, current limited





· 20 ms backup energy for use in the event of primary power failure, according to NAMUR

Technical Specifications

Warranty :    We offer one year warranty for all original new product.

Delivery   :     We will choose the DHL/FEDEX/TNT/UPS.

Payment   :    100% advance payment bank wire transfer.

Returns   :    Quality problems can be replaced within 15 working days from the date of receipt of the product,  repair services can be provided within 1 year.

Please contact us to get the product manual.
