The SPLPS01 is a LVDT Position Module used in symphony plus system.
Brand :
ABBPart number :
SPLPS01Description :
Symphony Plus LVDT Position ModuleOrigin :
MaltaCondition :
NewDimension :
35.56 mm x 177.80 mm x 298.45 mmWeight :
0.28 kgPayment :
Bank Transfer

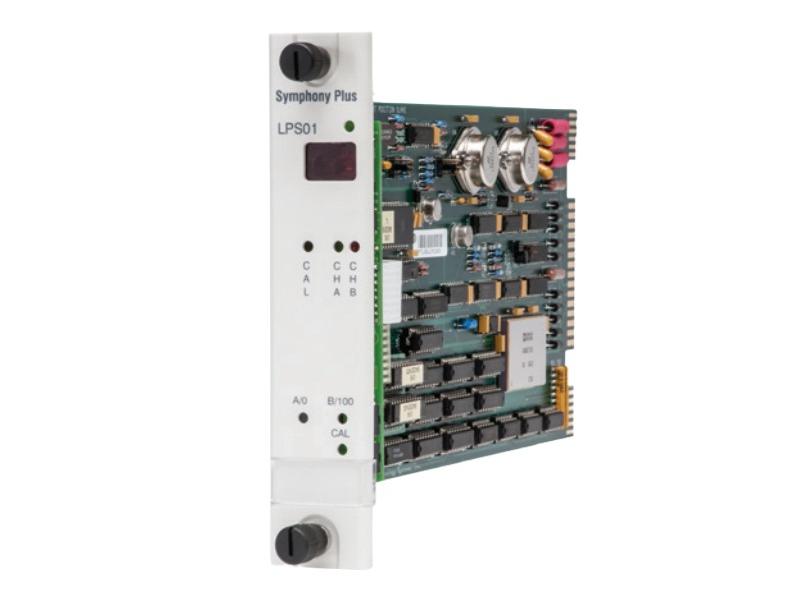

ABB SPLPS01 Symphony Plus LVDT Position Module
Functional Description
The Symphony Plus LVDT position module (SPLPS01) provides an interface through which a Symphony Plus
controller can read the position of two linear variable differential transformers (LVDTs) or rotary variable
differential transformers (RVDTs).
The SPLPS01 has three ambient modes:
Normal
Reads LVDT position and sends it to the multi-function processor (MFP) or bridge controller (BRC).
Calibration values are locked in while in this mode and cannot be altered.
Manual calibration
A technician uses an oscilloscope to adjust the module using the front panel display pushbuttons.
Automatic calibration
The valve is moved by the operator to opposite extremes. The microprocessor automatically adjusts the
internal parameters to the optimum values.
Technical Specifications
| Manufacturer | ABB |
| Part Number | SPLPS01 |
| Ordering Information | SPLPS01 |
| Product Catalog | Symphony® Plus |
| Description | Symphony Plus LVDT Position Module |
| Voltage | 24 Vdc |
| Current | 75 mA |
| Dimensions | 35.56 mm x 177.80 mm x 298.45 mm |
| Weight | 0.28 kg |
