The TY801 (3BSE028112R1) is a shunt board for S800 I/O System 800xA, for precise current measurement.
Brand :
ABBPart number :
TY801 3BSE028112R1Description :
Shunt StickOrigin :
SwitzerlandCondition :
NewDimension :
170 mm x 180 mm x 120 mmWeight :
0.05 kgPayment :
Bank Transfer

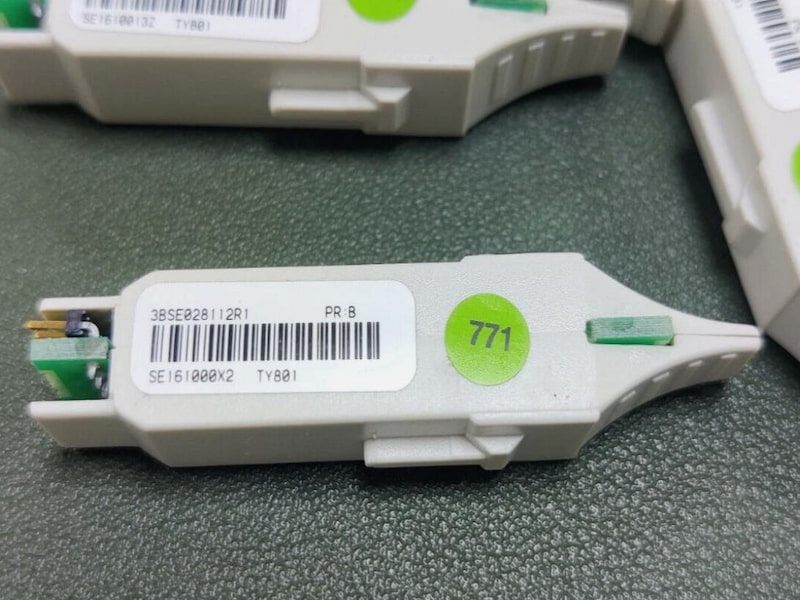

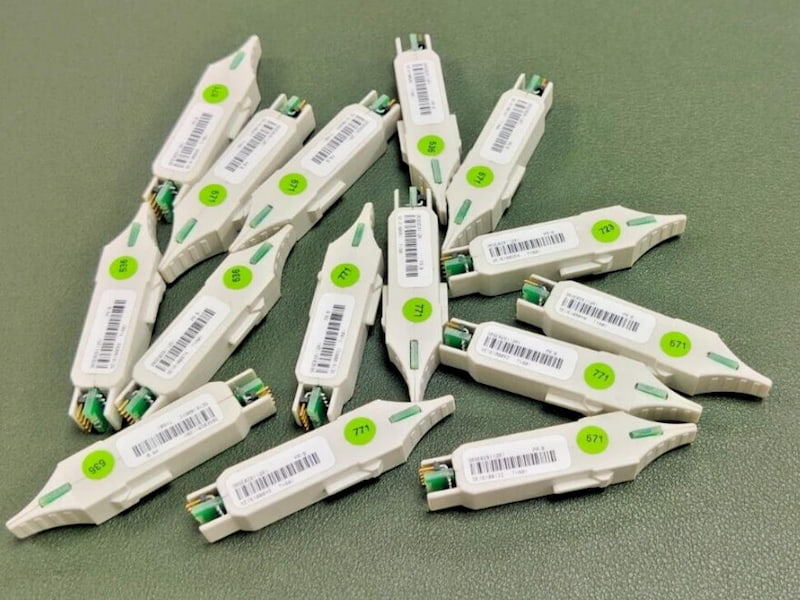

ABB TY801 3BSE028112R1 Shunt Stick
Description
ABB TY801 (3BSE028112R1) is a precision shunt board specifically designed for the S800 I/O system and tailored for the System 800xA distributed control system. It is compatible with analog input modules such as AI845 and AI880.
Equipped with two 125-ohm shunt resistors, it enables high-precision current measurement and signal conversion. It can be directly installed on the TU844/TU845 terminal units, meeting the accuracy requirements of industrial automation for analog signal acquisition.
Features
Compatible with S800 I/O and System 800xA system
Dual 125Ω current diversion resistors, precise current measurement
Compatible with analog input modules such as AI845 and AI880
Can be directly installed on TU844/TU845 terminal units
Compact structure, suitable for high-precision acquisition scenarios in industrial automation
Technical Specifications
| Manufacturer | ABB |
| Part Number | TY801 |
| Ordering Information | 3BSE028112R1 |
| Product Catalog | S800 I/O |
| Description | Shunt Stick |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 170 mm x 180 mm x 120 mm |
| Weight | 0.05 kg |
