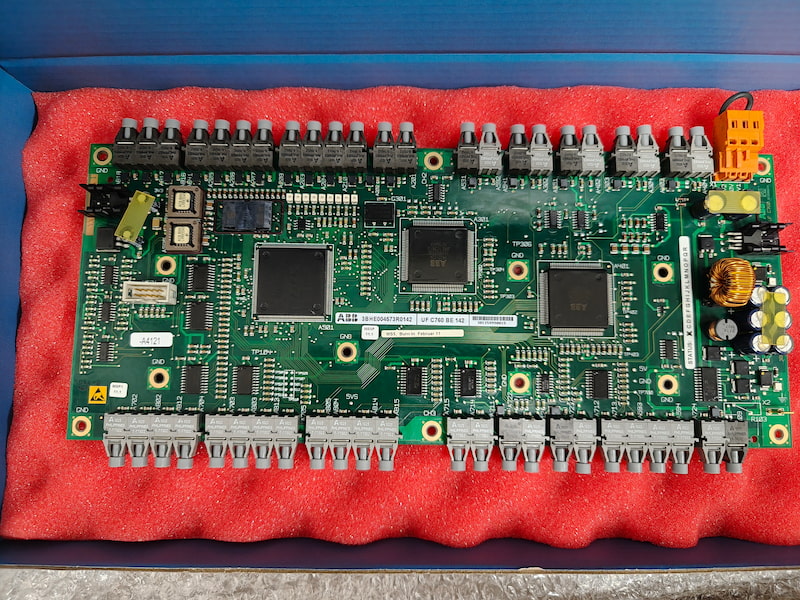

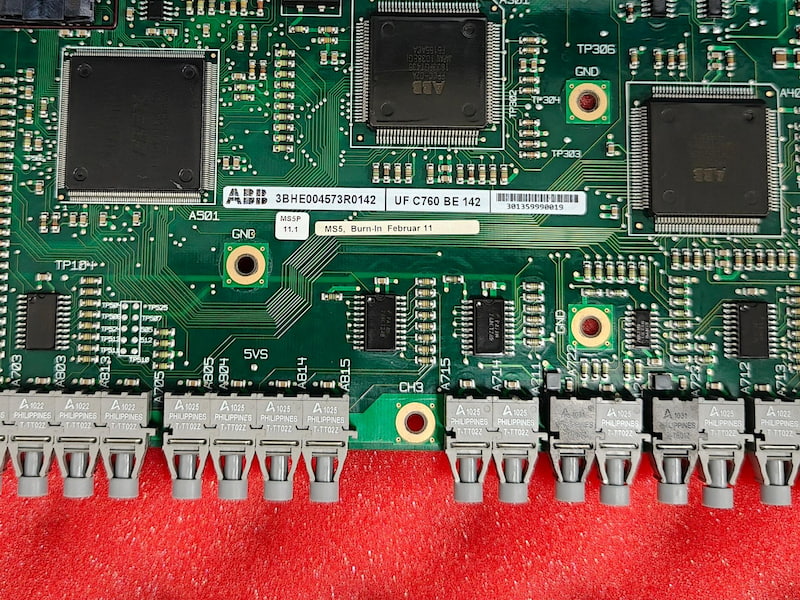

The UFC760BE142 is an interface board used in the ACS 6000 Medium Voltage Drives.
Brand :
ABBPart number :
UFC760BE142 3BHE004573R0142Description :
Interface BoardOrigin :
SwitzerlandCondition :
NewDimension :
320 mm x 180 mm x 20 mmWeight :
0.6 kgPayment :
Bank Transfer
ABB UFC760BE142 3BHE004573R0142 Interface Board
Functional Description
· Interface board is used as lGCT pulse controller. INT controls firing pattern for standard 12 inverter lGCTs.
One INT board controls the firing of one power stage (12 IGCTs).
· INT board is an interface between AMC board and all other printed circuit boards.
· INT board includes fast HW protections like overcurrent or overvoltage detection (from CVMl) or lGCT fault
detection (from GUSP or FSCD).
· In case of a serious fault which could damage the ACS 6000, INT trips immediately the MCB among the
other protection functions.
· In addition to standard connections 1st INU has a fiber optic interface with DlU/VLU/RBU/BCU (firing
signals to lGCTs & feedback from VLSCD boards), with EAF board for diode supervision in LSU if diode
rectifier is used and one additional output to trip the MCB directly.
· 3 MVA & 5 MVA INU is using VLSCD boards instead of FSCD boards.
Technical Specifications
| Manufacturer | ABB |
| Part Number | UFC760BE142 |
| Ordering Information | 3BHE004573R0142 |
| Product Catalog | ACS 6000 Medium Voltage Drive System |
| Description | Interface Board |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 320 mm x 180 mm x 20 mm |
| Weight | 0.6 kg |
