The VPM810 is a Valve Position Module responsible for the conditioning and digitization of the field I/O signals.
Brand :
ABBPart number :
VPM810Description :
Valve Position ModuleOrigin :
USACondition :
NewDimension :
44 mm x 119 mm x 106 mmWeight :
0.2 kgPayment :
Bank Transfer

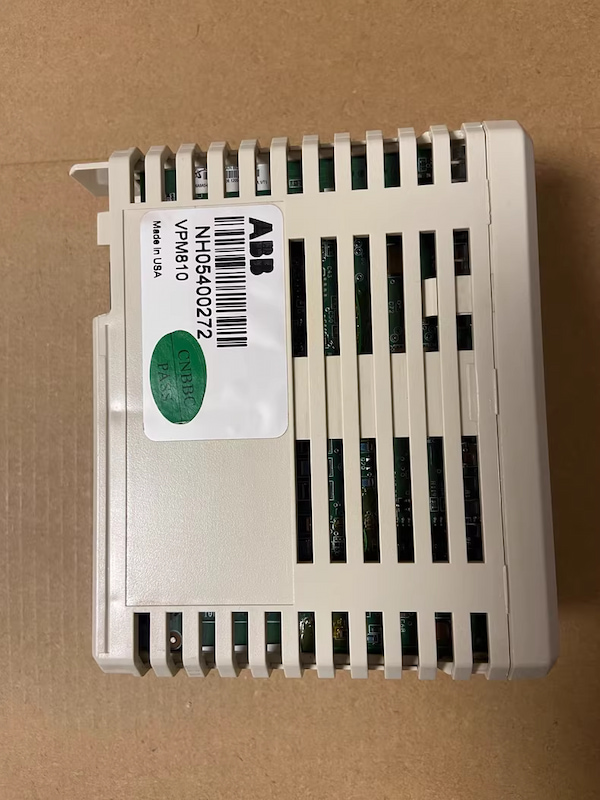

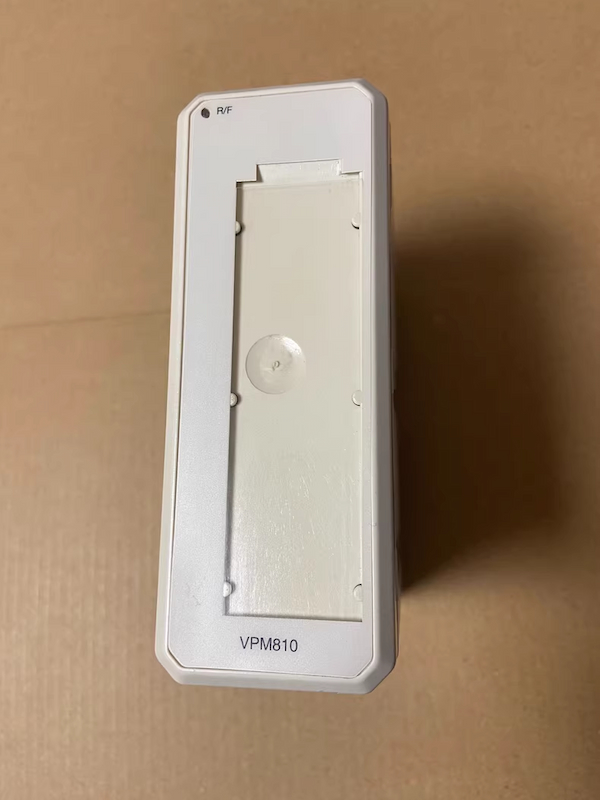

ABB VPM810 Valve Position Module
Functional Description
The VPM810 performs these functions:
· Receives the field l/O.
· Generates the output signals.
· Converts the input signals to digital.
· Transfers the digital signals to the CPM810.
The VPM810 module requires that a dip switch be configured prior to insertion into the TBU810 to select the
type of feedback devices to be used. Set the dip switch underneath the VPM810 module to the proper
setting for the type of feedback device(s) that will be used. This dip switch contains four switches. The
leftmost two switches set the selection for LVDT 1. and the rightmost two switches set the selection for LVDT 2.
Technical Specifications
| Manufacturer | ABB |
| Part Number | VPM810 |
| Ordering Information | VPM810 |
| Product Catalog | Symphony® Plus |
| Description | Valve Position Module |
| Voltage | 24 Vdc |
| Current | 4-20 mA |
| Dimensions | 44 mm x 119 mm x 106 mm |
| Weight | 0.2 kg |
