Functional Description

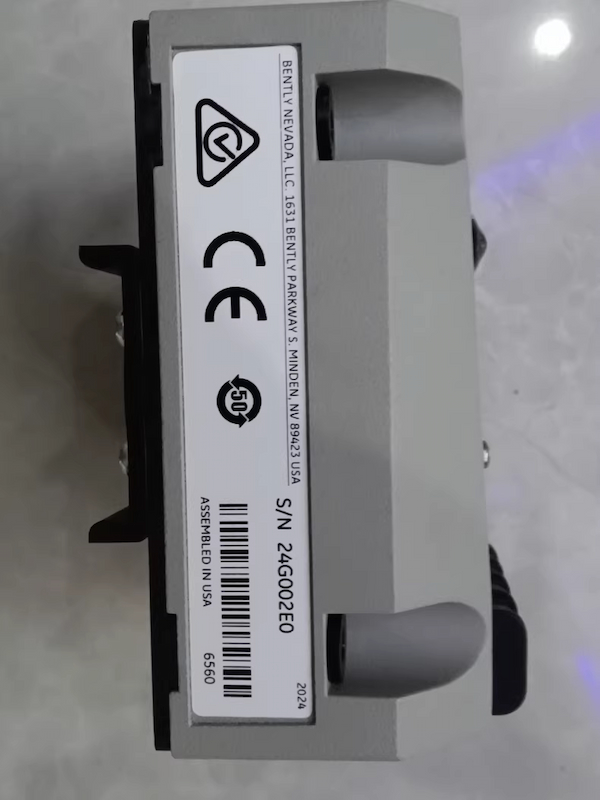

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of

centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA

proportional vibration signal as the input to their machinery control system.

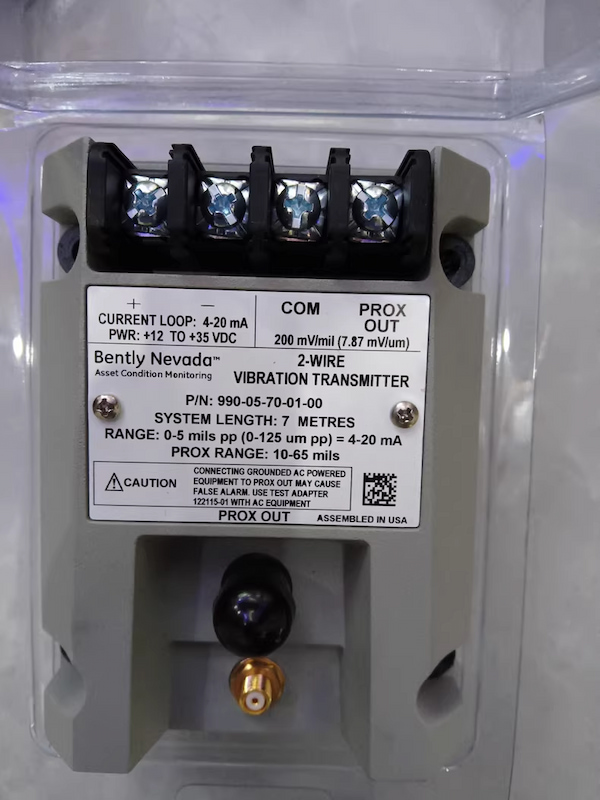

The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe

and its matching extension cable (available in 5 m and 7 m system length options).

The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units,

and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control

system where machinery protection alarming and logic occurs†.

Features

· Integrated Proximitor Sensor requires no external unit

· Non-isolated "PROX OUT" and "COM" terminals plus a coaxial connector to provide a dynamic vibration

and gap voltage signal output for diagnostics‡.

· Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.

· Test Input pin for quick verification of loop signal output, using a function generator as the input.

· A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.

· Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting.

· Potted construction for high humidity (up to 100% condensing) environments. Compatibility with 3300 NSv

proximity probe allows transducer installation in small areas with minimal clearance, typical of centrifugal air compressors.

Technical Specifications
