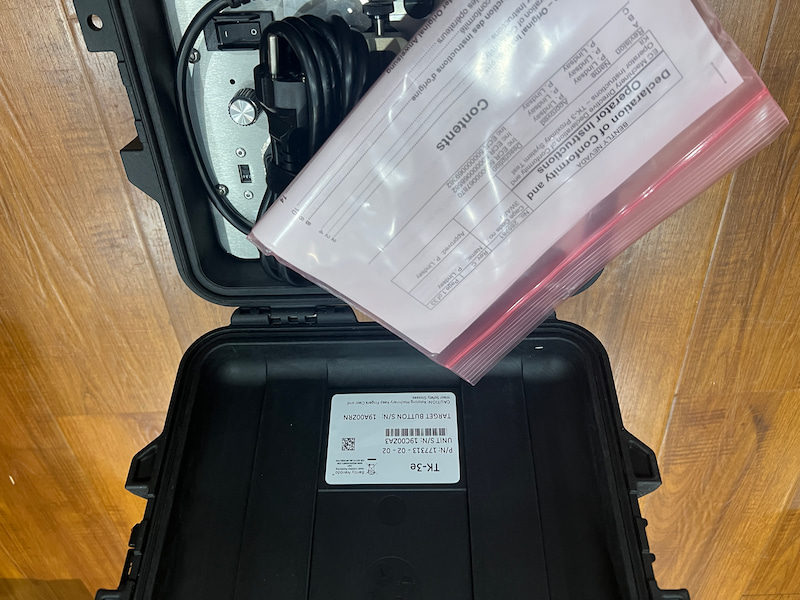

Bently Nevada TK-3e 177313-02-02 Proximity System Test Kit

Bently Nevada TK-3e 177313-02-02 Proximity System Test Kit

Functional Description

The TK-3e Proximity System Test Kit simulates shaft vibration and position for calibrating Bently Nevada

monitors.  It verifies the operating condition of the monitor readouts as well as the condition of the

proximity transducer system.  A properly calibrated system ensures that the transducer inputs and the

resulting monitor readings are accurate.

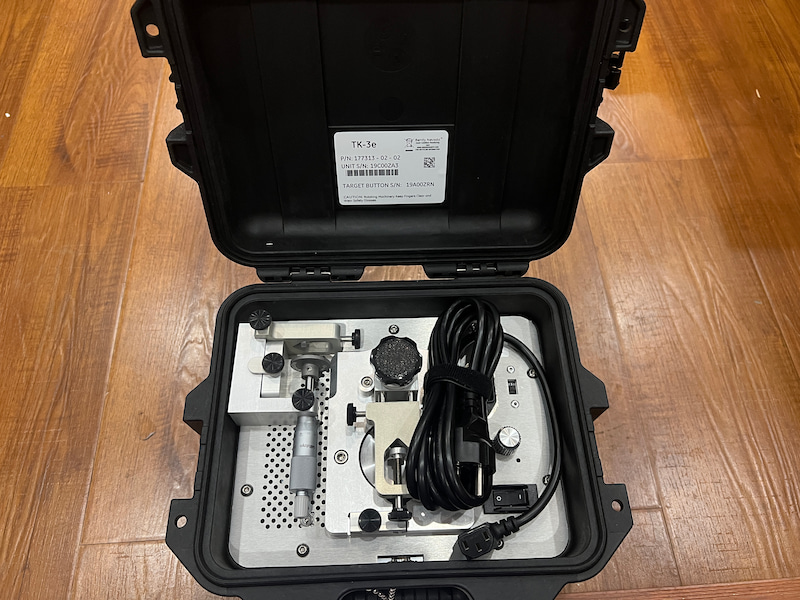

The TK-3e uses a removable spindle micrometer assembly to check the transducer system and position

monitor calibration.  This assembly features a universal probe mount that will accommodate probe

diameters from 5 mm to 19 mm (0.197 in to 0.75 in).  The mount holds the probe while the user moves the

target toward or away from the probe tip in calibrated increments and records the output from the

Proximitor Sensor using a voltmeter.  The spindle micrometer assembly also features a convenient magnetic

base for ease of use in the field.
