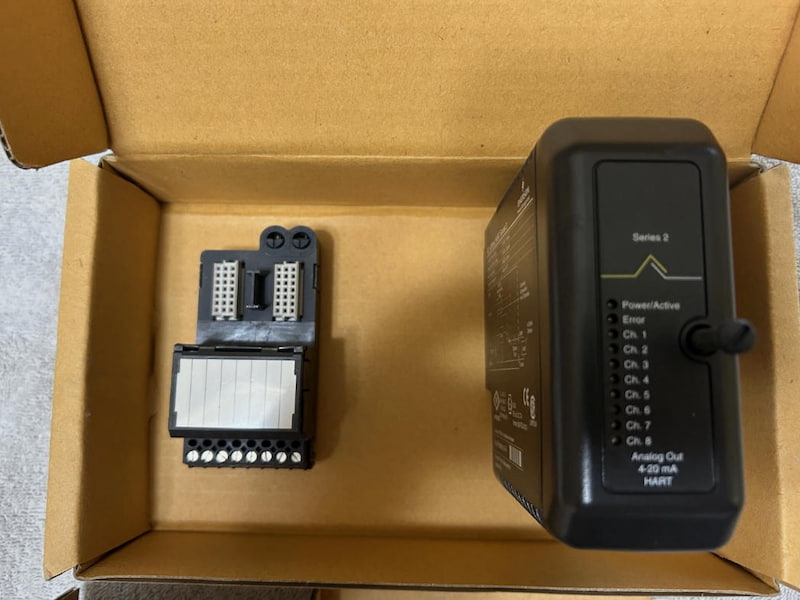

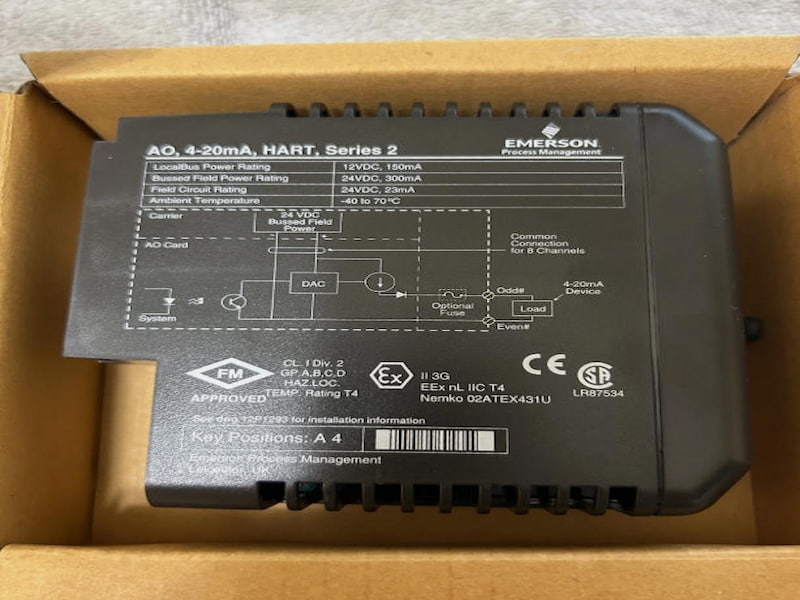

Emerson KJ3221X1-BA1 12P2531X112 8-Channel AO Module

Emerson KJ3221X1-BA1 12P2531X112 8-Channel AO Module

Description

KJ3221X1-BA1 (Material Number 12P2531X112) is the second-generation HART redundant 8-channel analog output module of Emerson DeltaV DCS system. It belongs to the standard IO hardware of the system and is responsible for converting the digital signals from the controller into 4-20mA standard analog signals for output to on-site valves, actuators and other equipment.

The module integrates HART communication function, supports remote reading of instrument parameters and online configuration, has channel independent short-circuit and open-circuit protection, supports redundant pairing operation, and has a wide temperature industrial design suitable for continuous process production line control cabinets in industries such as chemical, oil and gas, and power, ensuring the stability and controllability of the regulation loop.

Features

Compatible with Emerson DeltaV DCS system, the second-generation HART 8-channel analog output card

4-20mA standard current output, independent fault isolation protection for each channel

Built-in HART protocol, enabling remote debugging and collection of multiple variable data from the instrument

Supports 1:1 redundant configuration, allowing for online hot-swapping without downtime

Panel channel status indicator lights for quick identification of loop abnormal faults

-40℃ to 70℃ wide temperature tolerance, meeting G3 industrial pollution environment standards

Standard rack slot installation, with dedicated terminal block wiring for convenient installation

Technical Specifications
