The KJ400X1-CB1 is an I/O terminal block for Emerson DeltaV DCS system for field instrument wiring connection.
Brand :
EmersonPart number :
KJ400X1-CB1Description :
Fused I/O Terminal BlockOrigin :
GermanyCondition :
NewDimension :
5 mWeight :
930 gPayment :
Bank Transfer

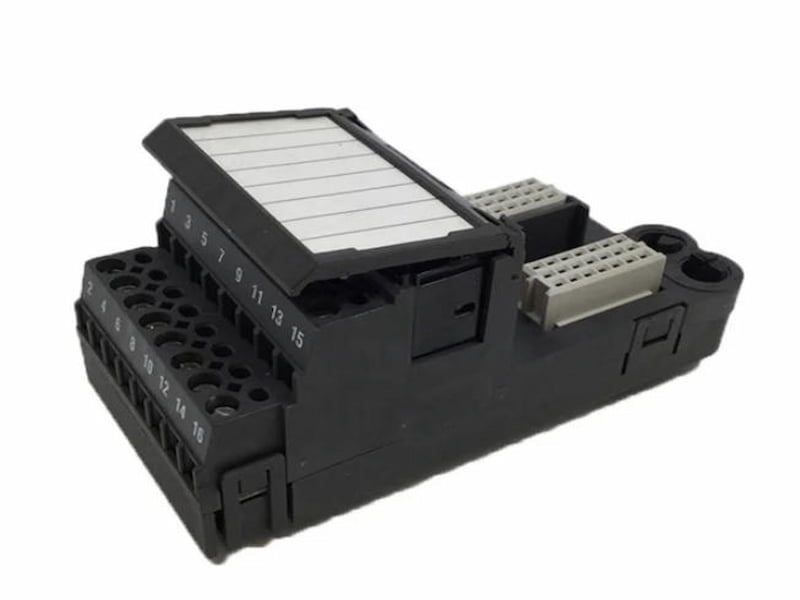

Emerson KJ400X1-CB1 Fused I/O Terminal Block
Description
KJ4001X1-CB1 is an Emerson DeltaV DCS M series dedicated 8-channel analog terminal base for IO cards. It serves as a connector between IO cards and field transmitters in the wiring process, and is used in conjunction with 8-channel HART analog card units. It is responsible for converting 4-20mA signals from field instruments.
The terminal base is equipped with a standard 250Ω power resistor, which enables lossless transmission of HART digital communication signals. It has single-channel independent overcurrent protection and supports compliant installation in explosion-proof areas. It is widely used in chemical, oil and gas, and power process control cabinets, simplifying on-site wiring and enhancing signal transmission stability.
Features
Compatible with Emerson DeltaV M series DCS, 8-channel HART analog terminal base
Built-in 250Ω sampling resistor, compatible with 4-20mA standard current transmitters
Complete HART signal transmission, supports remote instrument parameter reading and debugging
Single-channel independent overcurrent fuse, avoiding damage to upper IO card due to wiring faults
Spring-secured terminals, secure wiring, compatible with multiple specifications of industrial cables
Meets Ex nA explosion-proof certification, suitable for Zone 2 hazardous working environment cabinets
-40℃~70℃ wide temperature range operation, compliant with G3 industrial pollution environment standards
Plug-in type connection IO card, convenient for disassembly, maintenance, and no need to rewire
Technical Specifications
| Manufacturer | Emerson |
| Part Number | 5X00481G04 |
| Ordering Information | 5X00481G04 |
| Product Catalog | Ovation |
| Description | Ovation Controller CPU Card |
| Voltage | 24 Vdc |
| Current | 1 A |
| Dimensions | 5 m |
| Weight | 930 g |
