Description: IS200ERSCG1AAA is part of GE EX2100 series Exciter Regulator Converter Card. Topteng Technology has the largest stock of GE Speedtronic spare parts.Our team is available 24/7 to support you with your urgent needs for critical spare parts, please contact us.
Brand :
GEPart number :
IS200ERSCG1AAADescription :
Exciter Regulator Static Converter BoardOrigin :
USACondition :
NewDimension :
18 cm x 12 cm x 6 cmWeight :
0.2 kgPayment :
Bank Transfer

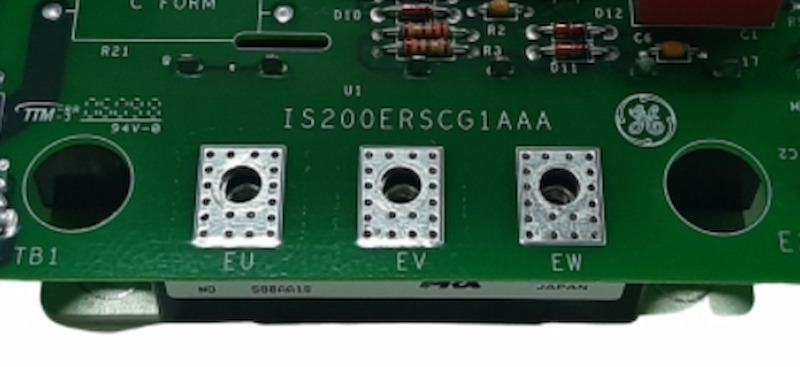

IS200ERSCG1AAA Exciter Regulator Static Converter Board
The IS200ERSCG1AAA Exciter Regulator Static Converter Board provides the pulse width modulated (PWM) dc output current and the field discharge function for the regulator control. These two functions are defined as the power conversion module (PCM).
The PCM consists of an integrated IGBT inverter module that contains six IGBTs connected in a 3-phase inverter configuration. Two of the six IGBTs are used to create the PWM dc output for field excitation. A third IGBT is used to discharge the dc link capacitors into an external dynamic discharge (DD) resistor. Maximum output is 20 A dc continuous, 30 A dc for 10 seconds. Input power is either rectified ac, dc from a station battery, or both.
A relay, K3, is provided to bypass the dc link charging resistor. The dc link charging resistor provides a soft charge on initial power up for the dc link capacitors.
Technical Specifications
| Manufacturer | GE |
| Part Number | IS200ERSCG1AAA |
| Ordering Information | IS200ERSCG1A |
| Product Catalog | EX2100 Excitation |
| Description | Exciter Regulator Static Converter Board |
| Voltage | 250 Vdc |
| Current | 30 Adc |
| Dimensions | 18 cm x 12 cm x 6 cm |
| Weight | 0.2 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
