GE IS200TRPGH1B IS200TRPGH1BCC Turbine Primary Trip Terminal Board

GE IS200TRPGH1B IS200TRPGH1BCC Turbine Primary Trip Terminal Board

IS200TRPGH1B is a Primary Trip Terminal Board manufactured and designed by General Electric as part of the Mark VI Series used in gas turbine control systems.Our team is available 24/7 to support you with your urgent needs for critical spare parts, please contact us.

  • Brand :

    GE
  • Part number :

    IS200TRPGH1B IS200TRPGH1BCC
  • Description :

    Turbine Primary Trip Terminal Board
  • Origin :

    USA
  • Condition :

    New
  • Dimension :

    34 cm x 18 cm x 5 cm
  • Weight :

    0.8 kg
  • Payment :

    Bank Transfer
Contact Us:



IS200TRPGH1BCC Turbine Primary Trip Terminal Board

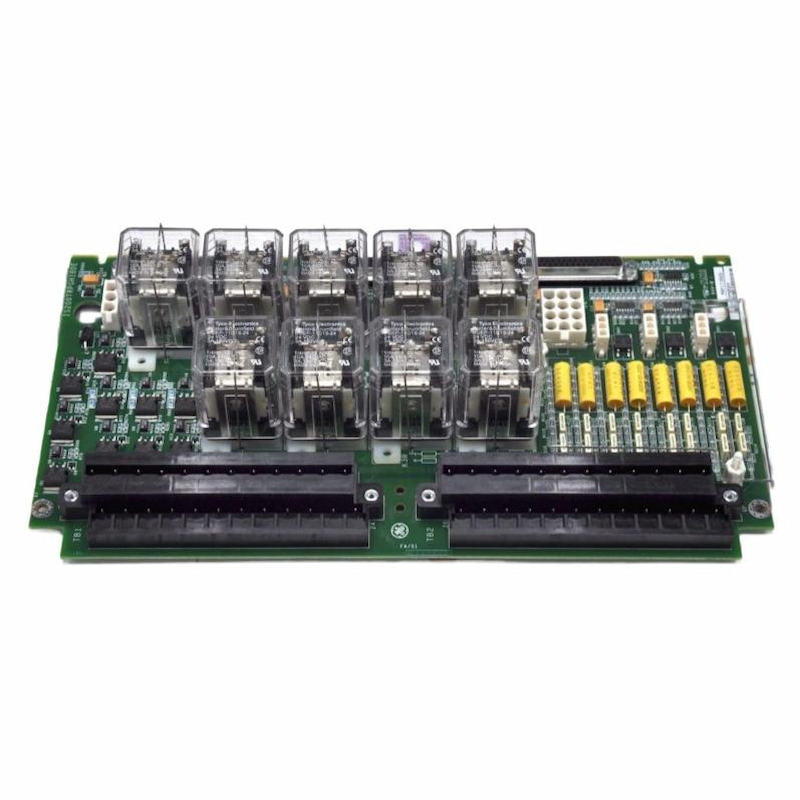

The Gas Turbine Primary Trip (TRPG) terminal board is controlled by the Primary Turbine Protection controller (VTUR or PTUR). TRPG contains nine magnetic relays in three voting circuits to interface with three trip solenoids (ETDs). The TRPG works in conjunction with the TREG to form the primary and emergency sides of the interface to the ETDs. TRPG also accommodates inputs from eight Geiger-Mueller® flame detectors for gas turbine applications.





There are two board types as follows:



• The H1A and H1B version for TMR applications has three voting relays per trip solenoid.

• The H2A and H2B version for simplex applications has one relay per trip solenoid.



Mark VI System



In the Mark* VI system, the TRPG works with the VTUR board and supports simplex and TMR applications. Cables with molded plugs connect TRPG to the VME rack where the VTUR board is located.



Mark VIe System



In the Mark VI system, the TRPG is controlled by the PTUR packs on TTURH1C and supports simplex and TMR applications. The I/O packs plug into the D-type connectors on TTURH1C, which is cabled to TRPG.



GE IS200TRPGH1BCC

Technical Specifications

Manufacturer GE
Part Number IS200TRPGH1BCC
Ordering Information IS200TRPGH1B
Product Catalog Mark VI or Mark VIe
Description Turbine Primary Trip Terminal Board
Voltage 125 Vdc
Current 1 A
Dimensions 34 cm x 18 cm x 5 cm
Weight 0.8 kg



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
