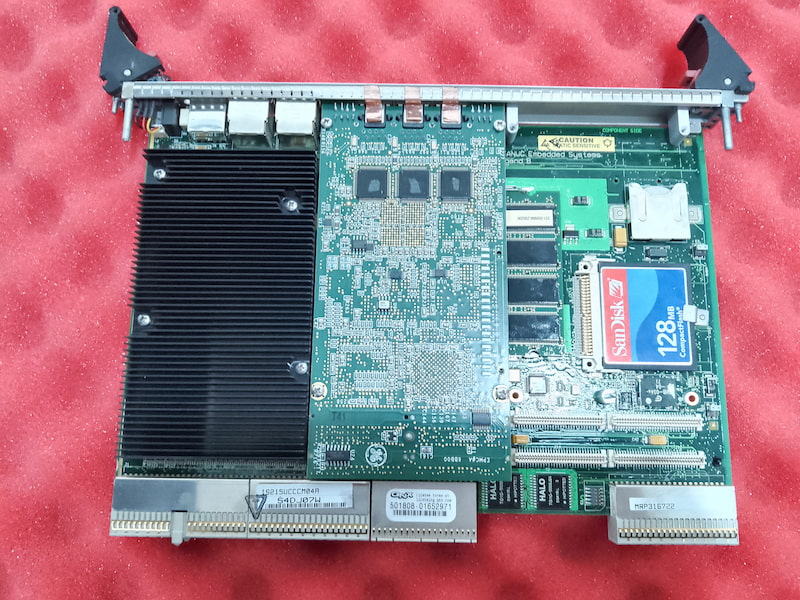

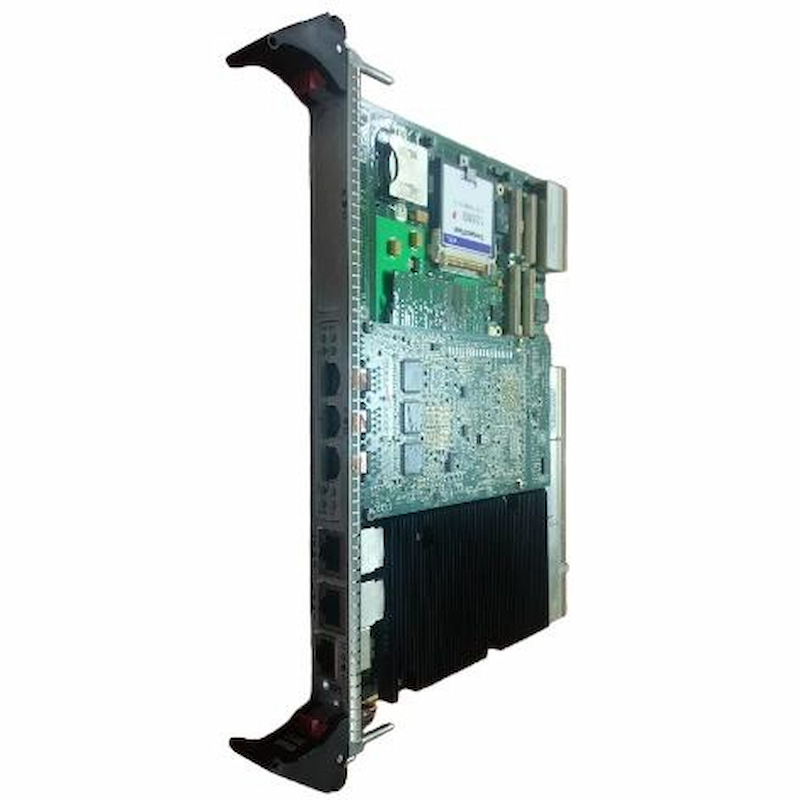

IS215UCCCM04A is a module assembly that includes IS215UCCCH4, Combined with 128 MB of flash memory, 256MB of DRAM, and the IS200 EPMC daughter board.US$21,500.00
Brand :
GEPart number :
IS215UCCCM04ADescription :
Mark VI CPCI Controller BoardOrigin :
USACondition :
NewDimension :
38.9 cm x 23.4 cm x 2.3 cmWeight :
0.8 kgPayment :
Bank TransferGE IS215UCCCM04A Mark VI CPCI Controller Board
Mark* VIe controllers are based on two different types of architecture. The UCCx controller is based on CompactPCI® (CPCI) single board computers. The UCSx controller is a series of stand-alone Modules.
The UCCx controllers are a family of CompactPCI® (CPCI), 6U high, single-board computers that runs the application code. The controller mounts in a CPCI enclosure, and communicates with the I/O packs through onboard I/O network interfaces. The controller operating system (OS) is QNX® Neutrino®, a real-time, multitasking OS designed for high-speed, high-reliability industrial applications. Five communication ports provide links to I/O, operator, and engineering interfaces as follows:
• Ethernet connection for the Unit Data Highway (UDH) for communication with HMIs, and other control equipment
• Ethernet connection for the R, S, and T I/O network
• RS-232C connection for setup using the COM1 port
The IS215UCCCH4 is a single-slot CPCI controller board containing a 1.6 GHz Pentium® M processor. Two 10/100/1000BaseTX Ethernet ports provide connectivity to the UDH and an optional Ethernet network. The IS215UCCCM04 is a module assembly that includes the IS215UCCCH4 combined with 128 MB of flash memory, 256 MB of DRAM, and the IS200EPMC.
Technical Specifications
Item
|
Specification
|
Microprocessor
|
Intel Pentium M processor 1.6 GHz
|
Memory
|
256 MB DDR SDRAM through one SODIMM
128 MB Compact Flash Module
256 KB L2 cache
Flash-backed SRAM - 8K allocated as NVRAM for controller functions
|
Operating System
|
QNX Neutrino
|
Programming
|
Control block language with analog and discrete blocks; Boolean logic represented
in relay ladder diagram format. Supported data types include:
Boolean
16-bit signed integer
16-bit unsigned integer
32-bit signed integer
32-bit unsigned integer
32-bit floating point
64-bit long floating point
|
Primary Ethernet Interface (2)
|
Twisted pair 10BaseT/100BaseTX, RJ-45 connectors:
TCP/IP protocol used for communication between controller and toolbox
TCP/IP protocol used for alarm communication to HMIs
EGD protocol for application variable communication with CIMPLICITY HMI and Series 90-70 PLCs
Ethernet Modbus protocol supported for communication between controller and third party DCS
|
EPMC Ethernet Interface (3 ports)
|
Twisted pair 10BaseT/100BaseTX, RJ-45 connectors:
|
TCP/IP protocols used to communicate between controllers and I/O packs
|
|
COM ports
|
One accessible through RJ-45 connector on front panel
For cabling use a standard 4 pair UTP cable (such as, Ethernet cable) joined with a PC null modem connector (GE part #342A4931ABP1)
|
Power Requirements
|
+5 V dc (+5%, -3%, 4.5 A (typical), 6.75 maximum)
+3.3 V dc, (+5%, -3%, 1.5 A (typical), 2.0 A maximum)
+12 V dc (+5%, -3%), 50 mA maximum
-12 V dc (+5%, -3%), 50 mA maximum
|
Environmental Specifications
|
Operating: 0 to +50°C (32 to +122 °F)
Storage: -40 to +85°C (-40 to +185 °F)
Relative humidity: 5% to 95%, no-condensing
|
Mechanical Specifications
|
Shock: 10 Gs, 16 ms half sine, 6 axis, 10 pulses each
Vibration: 6 Gs rms (20-2000 Hz) random, 0.0185 G2 per Hz
|
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
