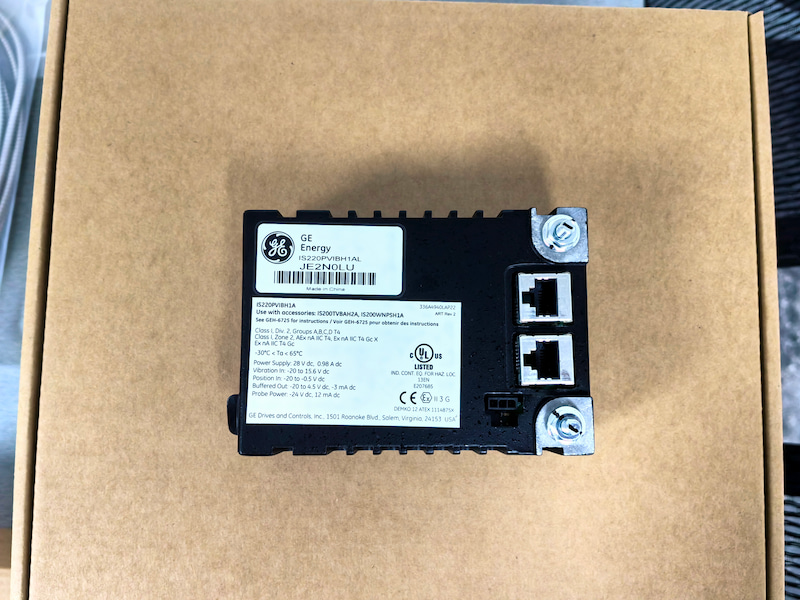

GE IS220PVIBH1A Mark VIe Vibration Monitor I/O Pack

GE IS220PVIBH1A Mark VIe Vibration Monitor I/O Pack

To avail our best deals for IS220PVIBH1A Vibration Monitor I/O Pack, contact us and we will get back to you within 24 hours. Mark VIe Vibration Monitor I/O pack IS220PVIBH1A. with terminal board (accessory) IS200TVBAH2A and three negative power supply daughterboards (accessories). US$10,500.00

  • Brand :

    GE
  • Part number :

    IS220PVIBH1A
  • Description :

    Mark VIe Vibration Monitor I/O Pack
  • Origin :

    USA
  • Condition :

    New
  • Dimension :

    8.3 cm × 4.2 cm × 12.2 cm
  • Weight :

    340 g
  • Payment :

    Bank Transfer
Contact Us:

PVIB Vibration Monitor Module



The Vibration Monitor (PVIB) pack provides the electrical interface between one or two I/O Ethernet networks and the TVBA vibration terminal board. The pack contains a processor board common to all Mark* VIe distributed I/O packs, an acquisition board and a daughterboard. The pack uses channels 1 through 8 to read vibration or proximity information from the following sensor types: Proximitors®, accelerometers with an integrated output (Channels 1-3 only), Velomitor®, or seismics. Channels 9 through 12 only support proximitors and channel 13 can input either a Keyphasor® signal-type or a proximity-type signal.



Input to the pack is through dual RJ45 Ethernet connectors and a 3-pin power input. The PVIB supports dual Ethernet networks for frame rates slower than 100 Hz. It supports single Ethernet network for frame rates of 3.125, 6.25, 12.5, 25, 50, and 100 Hz. Output is through a DC-37 pin connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs.



Compatibility



PVIBH1A is compatible with the Vibration Terminal Board (TVBA), but not compatible with the TVIB. The following table gives details of the compatibility:



Terminal Board TVBA     TVIB
Control mode Simplex-yes TMR-yes No





Control mode refers to the number of I/O packs used in a signal path:



• Simplex uses one I/O pack with one or two network connections.



• TMR uses three I/O packs with one network connection on each pack.



Technical Specifications

Manufacturer General Electric
Part Number IS220PVIBH1A
Ordering Information IS220PVIBH1A
Product Catalog Mark VIe Control Systems
Description Vibration Monitor I/O Pack
Voltage 28 Vdc
Current 1 A
Dimension 8.3 cm × 4.2 cm × 12.2 cm
Weight 340 g



GE IS220PVIBH1A

100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
