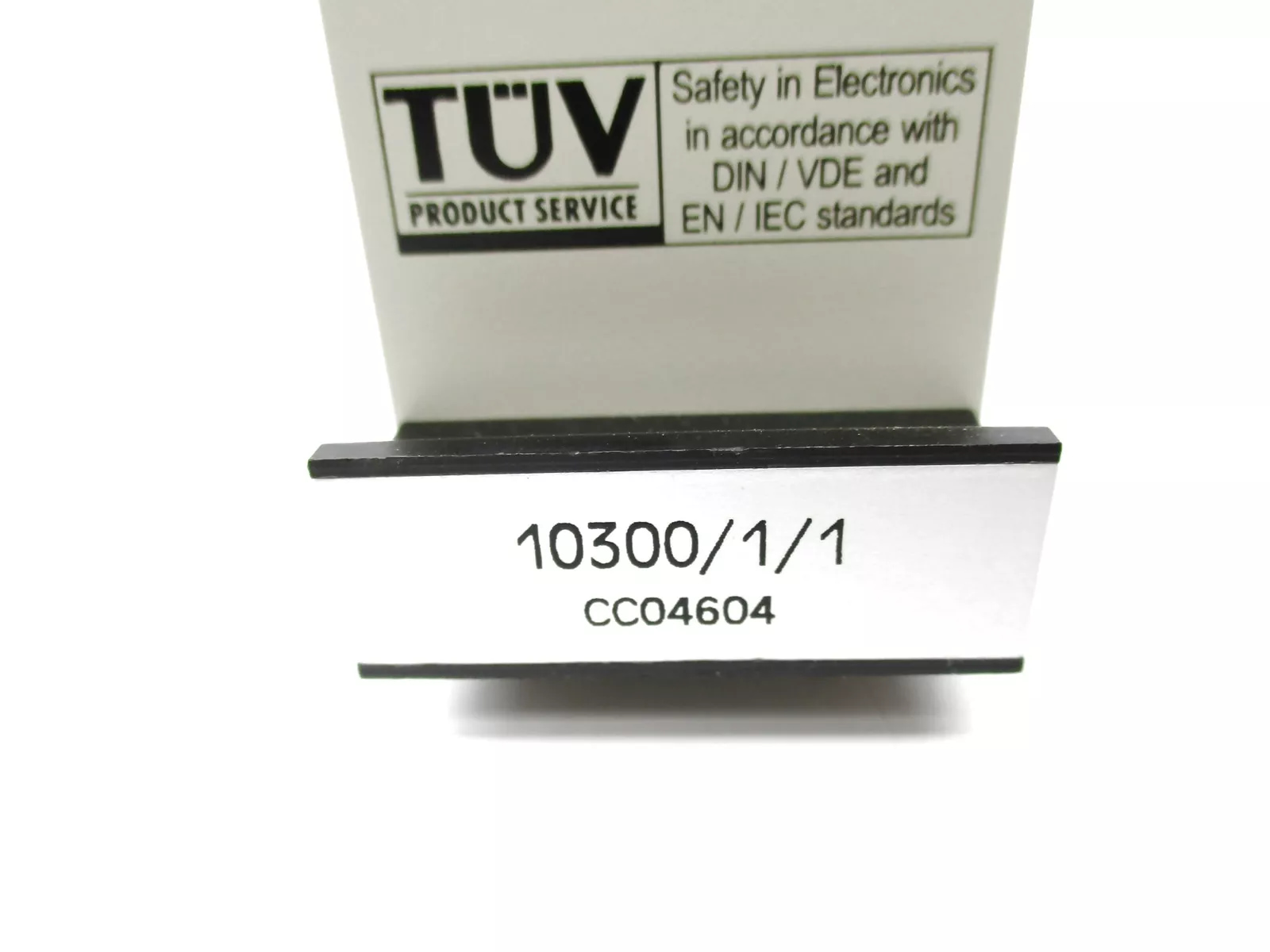

Honeywell 10300/1/1 Converter Module

10300/1/1 24 Vdc to 5 Vdc/12 A converter

The supply voltage of the FSC system is 24 Vdc, which can be



powered from the plant's 24 Vdc supply system with battery



back-up. The FSC system uses an internal 5 Vdc to power the



FSC modules. The 10300/1/1 DC/DC converter provides the



internal 5 Vdc with galvanic isolation between the two supply



voltages.

As the limits on the 5 Vdc power supply are very tight (± 5%), this module must be placed closely to the system bus (e.g. 12-SBUS). Use the sense wires correctly and use short wires of proper wire diameter to minimize voltage drop over the wiring. The minimum wire diameters for 'SUPPLY 5 VDC' and 'GND 5 VDC' to the system bus of the Central Part are as follows:

• up to 8 A: 2.5 mm² (AWG 14)

• up to 12 A: 6 mm² (AWG 10)

Technical Specifications

Warranty :    We offer one year warranty for all original new product.

Delivery   :     We will choose the DHL/FEDEX/TNT/UPS.

Payment   :    100% advance payment bank wire transfer.

Returns   :    Quality problems can be replaced within 15 working days from the date of receipt of the product,  repair services can be provided within 1 year.

Please contact us to get the product manual.
