Honeywell 10303/1/1 Power Supply Distribution Module

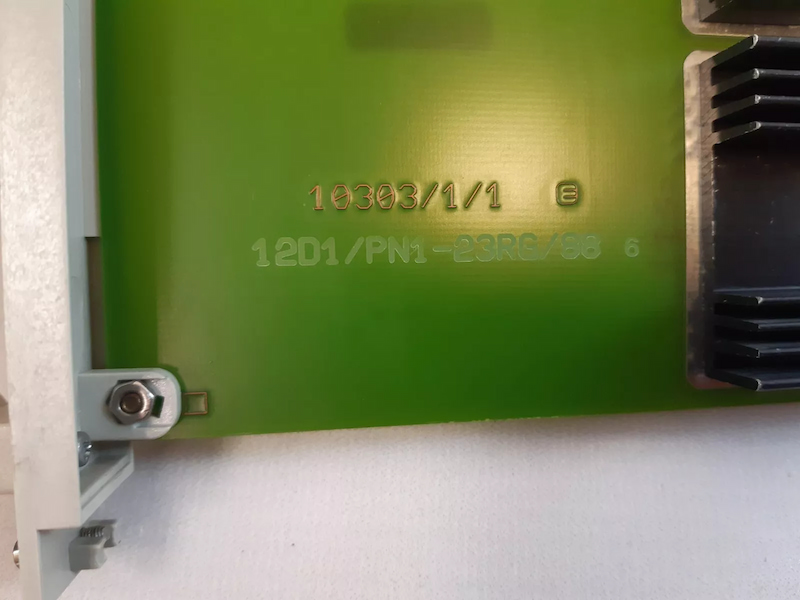

10303/1/1 Power supply distribution module (PSD)

The power supply distribution module (PSD) 10303/1/1 is only used in



configurations with redundant Central Parts and non-redundant I/O. It is



used to combine the output of the power supply units (PSUs) in the



redundant Central Parts into one 5 Vdc supply for the non-redundant I/O



part of the system. One power supply distribution module is required per



PSU module. The power supply to the Central Part must also be routed



through this module to create an equal voltage drop to the Central Part



and I/O section.

As the limits on the 5 Vdc power supply are very tight (± 5%), it is required to place the PSD modules next to the PSU modules to reduce the voltage drop in the wiring. The minimum wire diameter is 2.5 mm² (AWG 14).The PSD module may only be exchanged with the power supply to its PSU switched off.

Technical Specifications

Warranty :    We offer one year warranty for all original new product.

Delivery   :     We will choose the DHL/FEDEX/TNT/UPS.

Payment   :    100% advance payment bank wire transfer.

Returns   :    Quality problems can be replaced within 15 working days from the date of receipt of the product,  repair services can be provided within 1 year.

Please contact us to get the product manual.
