The 900G02-0102 is an 8-channel discrete input module for Honeywell ControlEdge HC900 systems.
Brand :
HoneywellPart number :
900G02-0102Description :
Digital Input Module - DC Voltage typeOrigin :
USACondition :
NewDimension :
137 mm x 35.6 mm x 120mmWeight :
0.2 kgPayment :
Bank Transfer

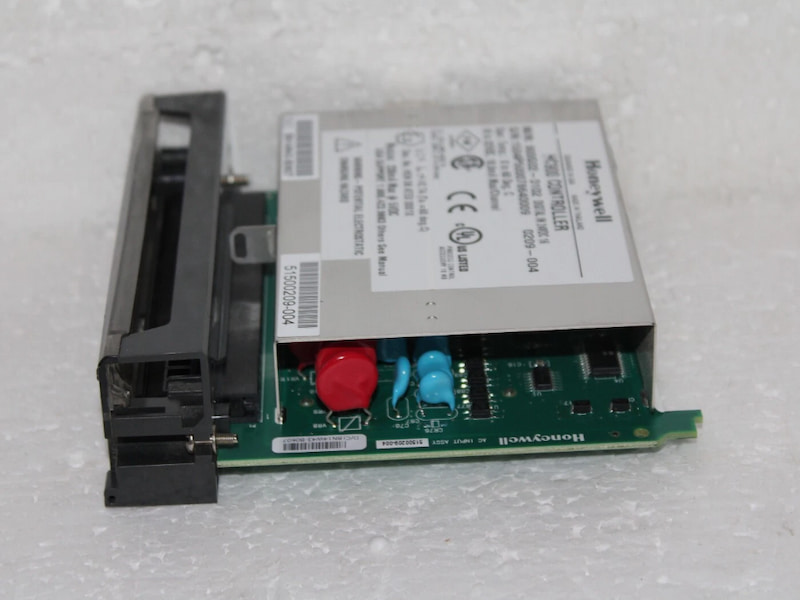

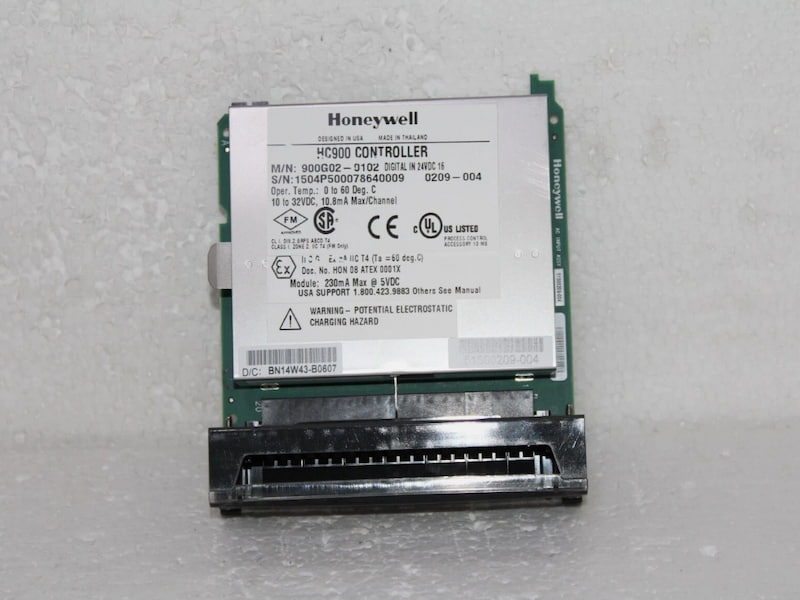

Honeywell 900G02-0102 Digital Input Module - DC Voltage type
Description
The DC Digital Input module provides two groups of 8 inputs, each with a pair of terminals for connection to common. DC power applied between the common terminal and an input cause the input to turn ON. There is a green LED state indicator for each channel on the module to indicate when a digital input is ON. A green blinking status LED on the module indicates when the module is being scanned. An amber blinking status LED indicates when channels are forced and a red status LED when module diagnostics exist. Logic in the controller allows the state to be inverted when necessary.
Inputs per module：16 (sinking)
Input Voltage Range：10 VDC to 32 VDC
Peak Voltage：32 VDC
AC Frequency：N/A
Galvanic lsolation：2 groups of 8 inputs (42.4VDC max.)
ON Voltage Level：9.5 VDC minimum
OFF Voltage Level：3.5 VDC maximum
Input lmpedance：2.6 K ohms nominal
Input Current：2.3 mA @ 12 VDC 6.9 mA@ 24 VDC nominal
Minimum ON Current：1.0 mA
Maximum OFF Current：0.7 mA
OFF to ON response time：4 ms maX
ON to OFF response time：4 ms max
Power Supply Loading：5V; 130mA max24V; 0mA
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | 900G02-0102 |
| Ordering Information | 900G02-0102 |
| Product Catalog | ControlEdge™ HC900 |
| Description | Digital Input Module - DC Voltage type |
| Voltage | 24 VDC |
| Current | 110 mA |
| Dimensions | 137 mm x 35.6 mm x 120mm |
| Weight | 0.2 kg |
