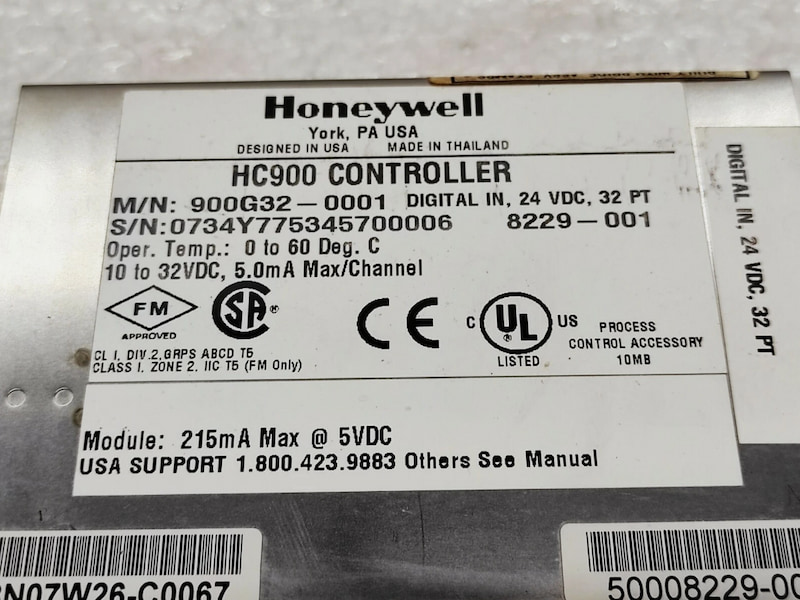

The 900G32-0001 is a 32-channel DC digital input module for Honeywell ControlEdge HC900 systems.
Brand :
HoneywellPart number :
900G32-0001Description :
32 Point Digital Input Module - DC Voltage typeOrigin :
USACondition :
NewDimension :
137 mm x 35.6 mm x 120mmWeight :
0.2 kgPayment :
Bank Transfer
Honeywell 900G32-0001 32 Point Digital Input Module - DC Voltage type
Description
The DC Digital Input module provides 32 inputs separated in to 2 groups of 16 channels each. Each group has a pair of screw terminals for the COM connection. DC power applied between the common terminal and an input cause the input to turn ON. There is a green LED state indicator for each channel on the module to indicate when a digital input is ON. A green blinking status LED on the module indicates when the module is being scanned. An amber blinking status LED indicates when channels are forced and a red status LED when module diagnostics exist. Logic in the controller allows the state to be inverted when necessary.
Inputs per module：32 (sinking)
Input Voltage Range：10 VDC to 32 VDC
Peak Voltage：32 VDC
AC Frequency：NIA
Galvanic lsolation：2 groups of 16 inputs(30VDC max.)
ON Voltage Level：9.5 vDC minimum
OFF Voltage Level：3.5 VDC maximum
input impedance：6.9 K ohms nominal
input Current：1.7 mA @ 12 VDC 3.5mA @ 24 VDC nominal
Minimum ON Current：1.0 mA
Maximum OFF Current：0.7 mA
OFF to ON response time*：5 ms max
ON to OFF response time*：5 ms max
Power Supply Loading：5V; 215mA max 24V; 0mA
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | 900G32-0001 |
| Ordering Information | 900G32-0001 |
| Product Catalog | ControlEdge™ HC900 |
| Description | 32 Point Digital Input Module - DC Voltage type |
| Voltage | 24 VDC |
| Current | 110 mA |
| Dimensions | 137 mm x 35.6 mm x 120mm |
| Weight | 0.2 kg |
