The 900H02-0102 is a 16-channel 24VDC digital output module for Honeywell ControlEdge HC900 systems.
Brand :
HoneywellPart number :
900H02-0102Description :
Digital Output Module – DC TypeOrigin :
USACondition :
NewDimension :
137 mm x 35.6 mm x 120mmWeight :
0.2 kgPayment :
Bank Transfer

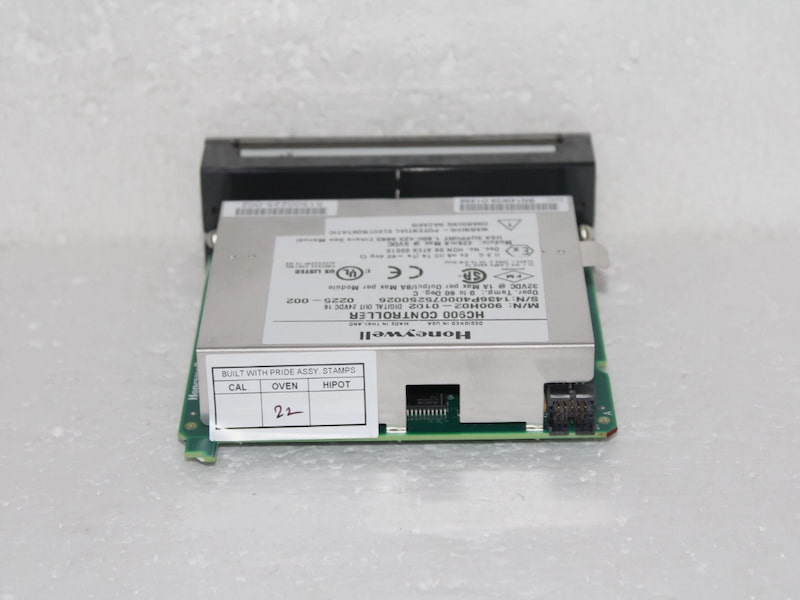

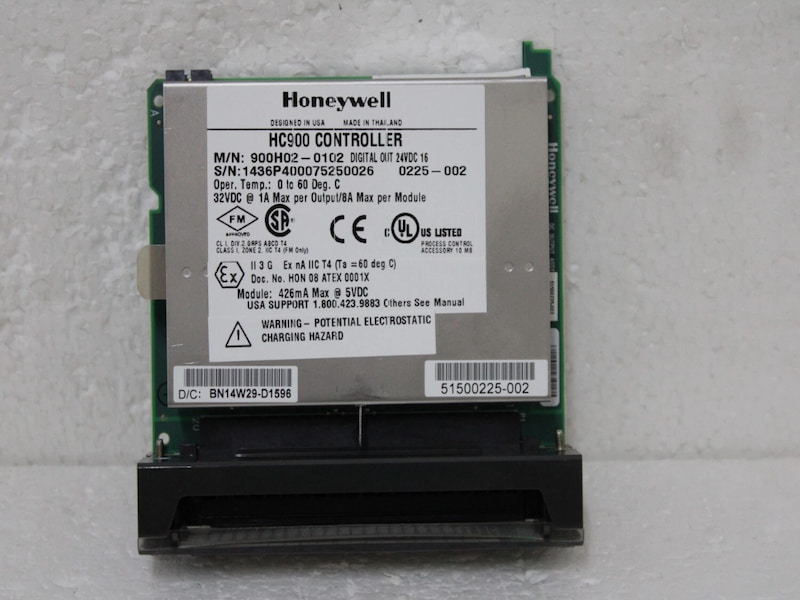

Honeywell 900H02-0102 Digital Output Module – DC Type
Description
The DC Digital Output module provides 16 outputs separated in to 2 groups of 8 channels each that are powered externally. Each group has a pair of screw terminals for +V and COM connections. The outputs are low side switching (current sinking) type. Overload protection is built into each output; when tripped the power must be recycled to reset the module.
There is a green LED state indicator for each channel on the module to indicate when a digital output is ON.
A green blinking status LED on the module indicates when the module is being scanned. An amber blinking status LED indicates when channels are forced and a red status LED when module diagnostics exist..
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | 900H02-0102 |
| Ordering Information | 900H02-0102 |
| Product Catalog | ControlEdge™ HC900 |
| Description | Digital Output Module – DC Type |
| Voltage | 24 VDC |
| Current | 110 mA |
| Dimensions | 137 mm x 35.6 mm x 120mm |
| Weight | 0.2 kg |
