The VSV301 is a Monitoring Module designed for use in the distributed vibration & combustion monitoring system.
Brand :
VMPart number :
VSV301 600-034Description :
Monitoring ModuleOrigin :
SwitzerlandCondition :
NewDimension :
100.7 mm x 54.5 mm x 123.7 mmWeight :
300 gPayment :
Bank Transfer

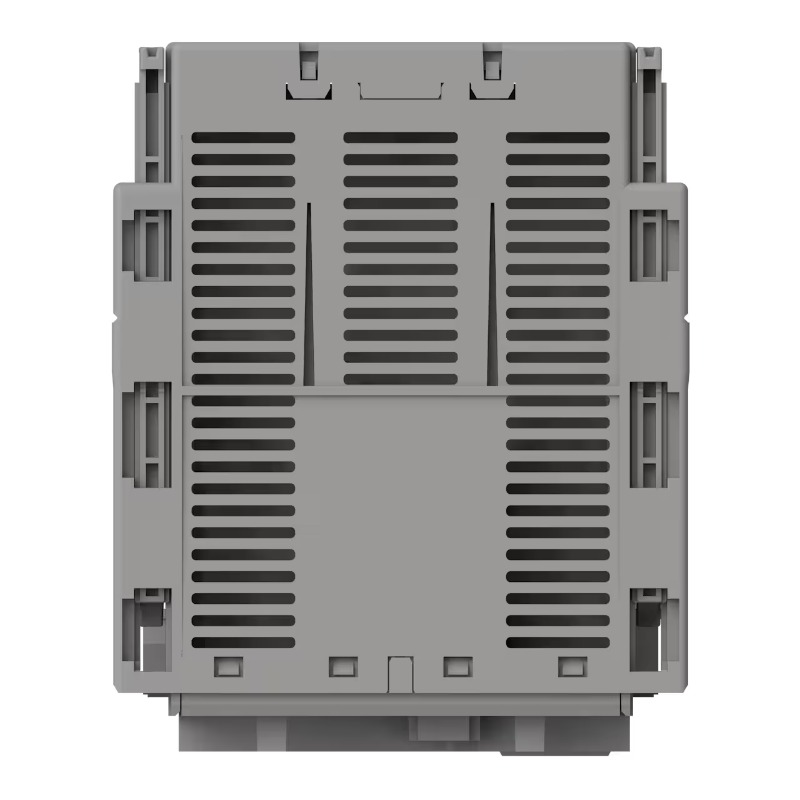

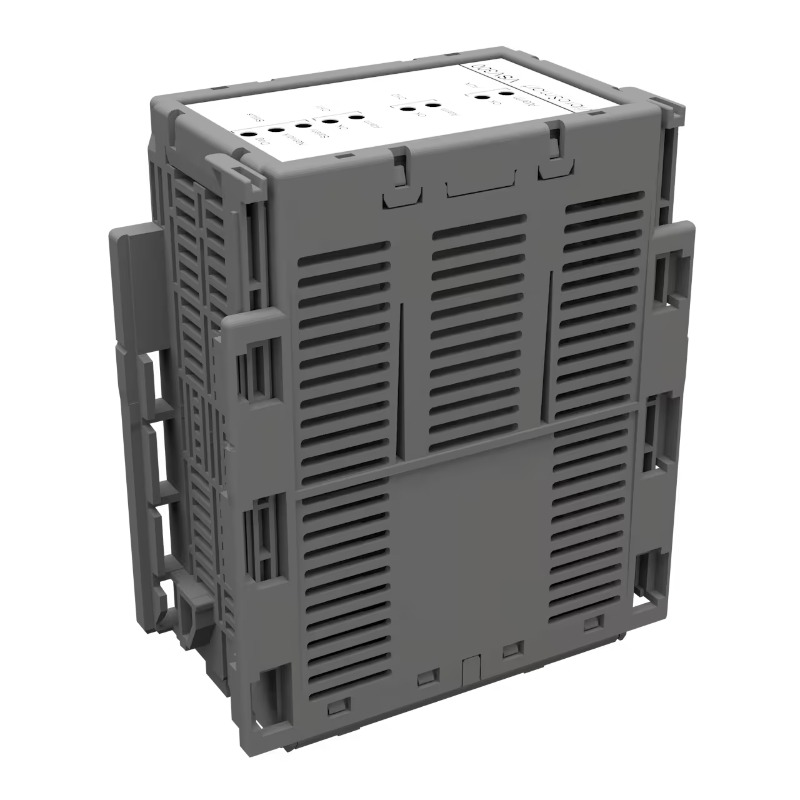

VSV301 600-034 Monitoring Module
Functional Description
The VSV301 monitoring module has two independent dynamic vibration channels and one auxiliary channel,
that can be configured as either a tachometer or a DC input channel. The VSV301 module is capable of
standalone vibration monitoring or can be integrated with other vibration modules to create a larger
system with more measurement channels and features.
The VSV301 monitoring module performs the data acquisition and all of the signal processing (filtering,
analog-to-digital conversion, time and frequency domain processing, and resampling) required to produce
processed outputs and extracted data for physical output and data presentation in vibration sight scope.
This includes spectral band extractions, advanced FFT analysis, trending and limit checks (alarm and sensor
OK), and run-up / run-down acquisition.
Technical Specifications
| Manufacturer | VM |
| Part Number | VSV301 |
| Ordering Information | 600-034 |
| Product Catalog | Vibration & combustion monitoring system |
| Description | Monitoring Module |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 100.7 mm x 54.5 mm x 123.7 mm |
| Weight | 300 g |
