The 3BHE004573R0142 is an INU interface board for ABB generator excitation systems for internal signal transmission and connection.
Brand :
ABBPart number :
3BHE004573R0142Description :
UF C760 BE142 INTERFACE BOARDOrigin :
SwitzerlandCondition :
NewDimension :
170 mm x 180 mm x 120 mmWeight :
0.3 kgPayment :
Bank Transfer

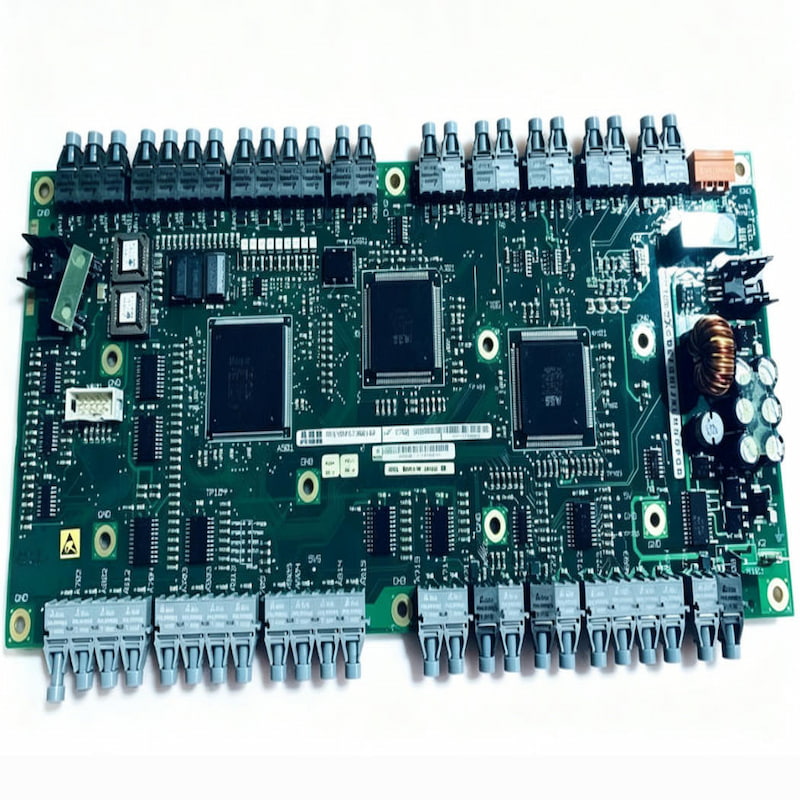

ABB 3BHE004573R0142 UF C760 BE142 INTERFACE BOARD
Description
ABB 3BHE004573R0142 (UFC760BE142) is an INU interface board配套 for ABB MACH 2 control system. It is a core component of the excitation and high-voltage direct current transmission (HVDC) system, responsible for signal transfer, command transmission and data interaction between the main controller and the converter valve / excitation unit， ensuring the coordinated operation of power electronic equipment.
This interface board adopts an industrial-grade reinforced design， equipped with high-speed DSP and optical communication circuits， resistant to electromagnetic interference and vibration， suitable for harsh working conditions in power and metallurgy industries； it integrates multi-channel signal conditioning and isolation protection， supports hot swapping， online diagnosis and status monitoring， has a compact structure and is easy to install， effectively reducing the risk of operation downtime.
Features
Model: 3BHE004573R0142 (UFC760BE142), Type: INU Interface Board
Compatible Systems: ABB MACH 2, Excitation System, HVDC Converter Valve Control Unit
Core Functions: System Signal Conversion, High-Speed Command Transmission, Data Interchange, Status Monitoring
Communication Interfaces: Dual Fiber Optics, RS-485, System Bus, Anti-interference, Stable Transmission
Environmental Tolerance: Operating Temperature -20°C to + 60°C, Strong Resistance to Vibration and Electromagnetic Interference
Electrical Characteristics: Channel Isolation Protection, 24V DC Power Supply, Precise and Reliable Signal Transmission
Maintenance Design: Plug-and-Play Installation, LED Status Indicators, Integrated Fault Diagnosis, Facilitating Quick Replacement
Technical Specifications
| Manufacturer | ABB |
| Part Number | 3BHE004573R0142 |
| Ordering Information | 3BHE004573R0142 |
| Product Catalog | Connection Unit |
| Description | INTERFACE BOARD |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 170 mm x 180 mm x 120 mm |
| Weight | 0.3 kg |
