The 3BHB017688R0001 is an IPS 21-35 AD power supply board for ABB medium voltage drives providing regulated power output.
Brand :
ABBPart number :
3BHB017688R0001Description :
IPS 21 - 35 AD POWER SUPPLYOrigin :
GermanyCondition :
NewDimension :
170 mm x 180 mm x 120 mmWeight :
5.5 kgPayment :
Bank Transfer

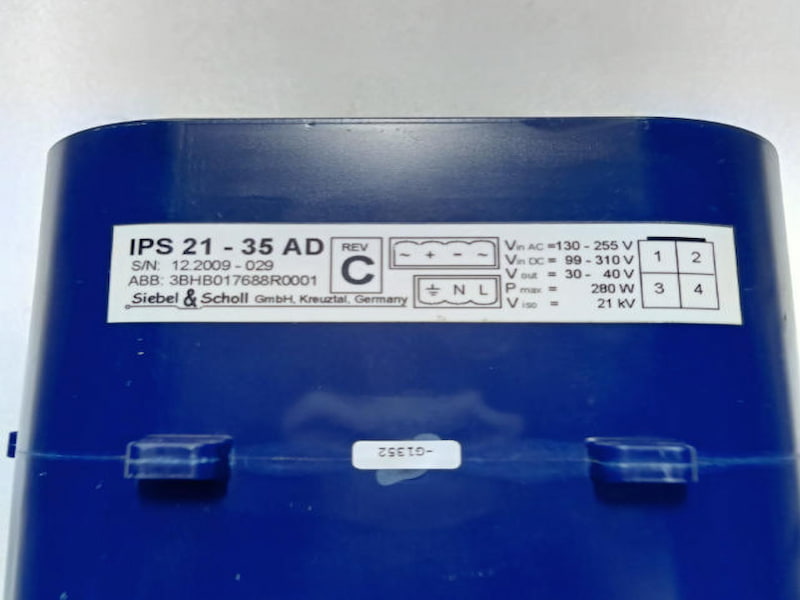

ABB 3BHB017688R0001 IPS 21 - 35 AD POWER SUPPLY
Description
ABB 3BHB017688R0001 (IPS 21-35 AD) is an industrial power module of the ABB IPS21 series, suitable for medium-voltage drives, DCS and excitation control systems. It provides a stable and isolated 24VDC power source for PLC, I/O modules and field devices, and is widely used in critical automation scenarios such as power, metallurgy, and chemical industries.
This power supply adopts industrial-grade rugged design, with wide AC/DC input range (85–265VAC/120–370VDC), output 24VDC/35A, and efficiency above 94%. It features 4kV electrical isolation and overvoltage, overcurrent, and short-circuit protection, is resistant to interference, has a temperature range of (-25℃ to + 70℃), supports DIN rail installation and hot swapping, and ensures long-term reliable operation under harsh conditions.
Features
Model: 3BHB017688R0001 (IPS 21-35 AD), Type: Industrial Isolation Power Module
Compatible Systems: ABB Medium Voltage Drive, DCS, Excitation System and Industrial Automation Control Equipment
Input Specifications: 85–265VAC/120–370VDC, Wide Voltage Compatibility
Output Specifications: 24VDC ±1%, 35A, 840W, Efficiency ≥ 94%
Safety Isolation: 4kV Electrical Isolation, Anti-ground loop and surge interference prevention
Protection Mechanism: Overvoltage, Overcurrent, Short Circuit, Overheat Protection, Safe and Stable Operation
Environmental Tolerance: -25°C to + 70°C, Anti-vibration, Electromagnetic Interference Resistance, Compatible with Harsh Working Conditions
Installation and Maintenance: DIN Rail Installation, LED Status Indication, Support for Hot Swap and Online Diagnosis
Technical Specifications
| Manufacturer | ABB |
| Part Number | 3BHB017688R0001 |
| Ordering Information | 3BHB017688R0001 |
| Product Catalog | Connection Unit |
| Description | INT-2 Board |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 170 mm x 180 mm x 120 mm |
| Weight | 5.5 kg |
