The 3BHE004573R0143 is an interface board for ABB excitation control systems for internal signal connection and data communication.
Brand :
ABBPart number :
BHE004573R0143Description :
UF C760 BE143 INTERFACE BOARDOrigin :
SwitzerlandCondition :
NewDimension :
170 mm x 180 mm x 120 mmWeight :
0.5 kgPayment :
Bank Transfer

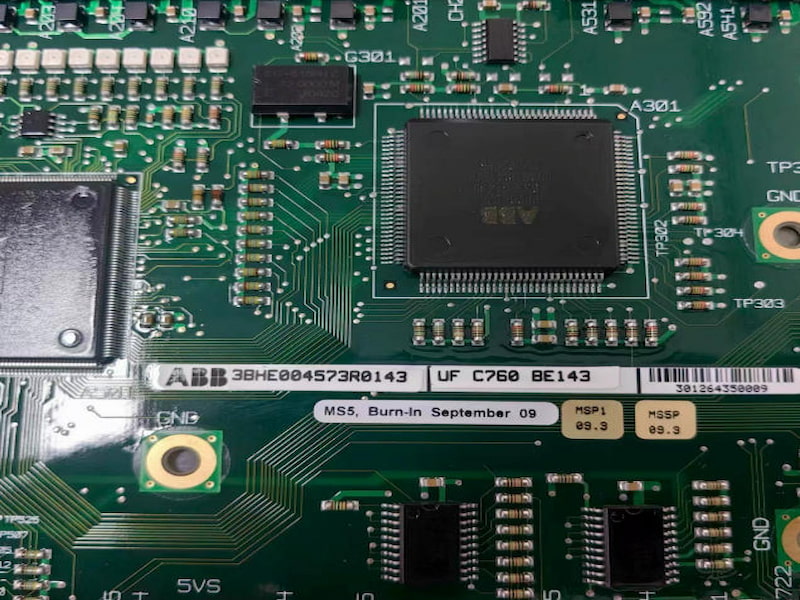

ABB 3BHE004573R0143 UF C760 BE143 INTERFACE BOARD
Description

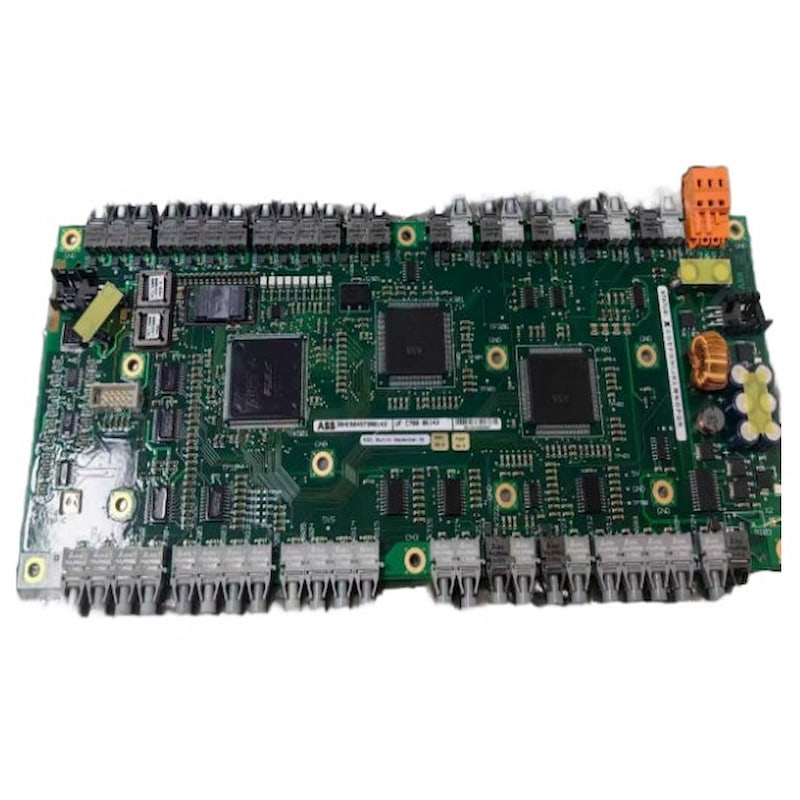

ABB 3BHE004573R0143 (UFC760BE143) is an INU interface board for the ABB ACS 6000 medium-voltage drive system. As a communication hub between the control unit (COU) and the excitation/rectifier valve, it is responsible for signal transfer, data exchange, and protocol conversion, ensuring the coordinated and stable operation of the power drive and excitation systems.
This interface board adopts an industrial-grade reinforced circuit board design, equipped with high-speed signal processing chips and multi-channel isolation circuits, capable of resisting electromagnetic interference and withstanding vibration and shock. It supports dual communication links of fiber optic and bus, integrates fault diagnosis and LED status indication, has a compact structure, and is convenient for plug-and-play installation. It is suitable for long-term continuous operation in harsh conditions such as power and metallurgy.
Features
Model: 3BHE004573R0143 (UFC760BE143), Type: INU Communication Interface Board
Compatible Systems: ABB ACS 6000 Medium Voltage Drive, Excitation Control System, Converter Valve Control Unit
Core Functions: System Signal Conversion, High-Speed Data Interchange, Communication Protocol Conversion, Status Monitoring
Communication Interfaces: Fiber Optic, System Bus, Isolation Design, Stable Transmission and Anti-Interference
Electrical Characteristics: 24VDC Power Supply, Channel Electrical Isolation, Overvoltage / Overcurrent Protection
Environmental Tolerance: -20°C to + 60°C, Strong Resistance to Vibration and Electromagnetic Interference, Compatible with Harsh Environments
Maintenance Design: Plug-and-Play Installation, LED Status Indication, Integrated Fault Diagnosis, Facilitates Quick Replacement
Technical Specifications
| Manufacturer | ABB |
| Part Number | 3BHE004573R0143 |
| Ordering Information | 3BHE004573R0143 |
| Product Catalog | Connection Unit |
| Description | UF C760 BE143 INTERFACE BOARD |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 170 mm x 180 mm x 120 mm |
| Weight | 0.5 kg |
