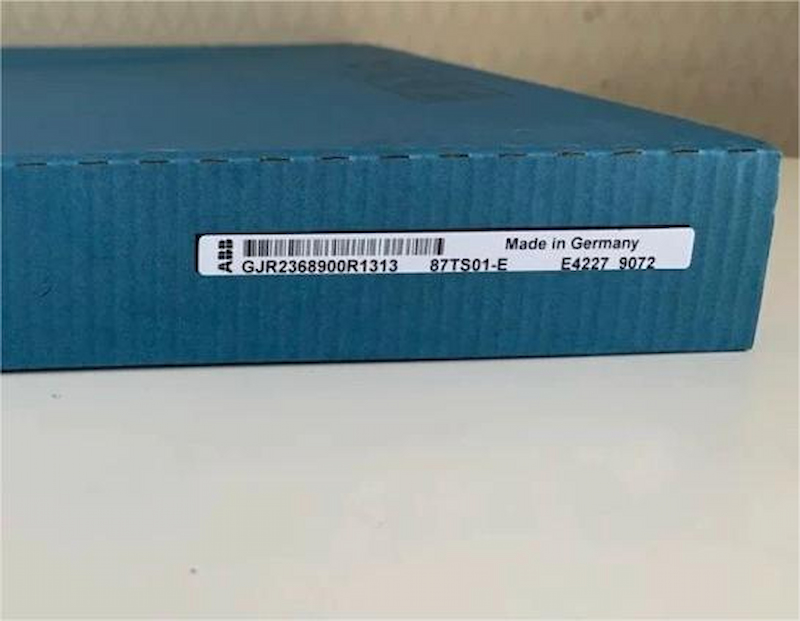

ABB 87TS01K-E GJR2368900R1313 Coupling Module

87TS01K-E GJR2368900R1313 Coupling Module

Functional Description

The 87TS01K-E  is a Coupling Module, manufactured and designed by ABB as part of the communication modules used in the Procontrol P14 system.

Within the PROCONTROL system, module 87TS01-E/R1313 functions as a master clock which is set by a radio clock (overa serial interface; reception is from the DCF77 time transmitter), and which needs to be synchronized. The time received from the radio clock is made available to the entire PROCONTROL system and is used as system time. lt is transmitted cyclically in the form of time telegrams.

The time telegrams containing the system time may be received and processed by modules specifically designed for this purpose.

Features

The time telegrams are transmitted cyclically. The current time is transferred through the RS232c interface coming from the DCF77 time receiver. Modules which conform to the prescribed time data format and transfer protocol are suitable foruse as DCF77 time receivers.

The master clock is synchronized by the time receiver every 60 sec.

The module may be plugged into any station of the PROCONTROL bus system with redundant 24 V module supply (from 89MS01/R0200 or 89MS02/R0100). lt is provided with a standard interface to the PROCONTROL station bus.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
