The 70AB01C-ES is a Digital Output Module, manufactured and designed by ABB as part of the I/O Modules used in the Procontrol P13 system.
Brand :
ABBPart number :
70AB01C-ES HESG447224R0002Description :
Digital Output ModuleOrigin :
GermanyCondition :
NewDimension :
20.3 cm x 15.2 cm x 2.5 cmWeight :
0.2 kgPayment :
Bank Transfer

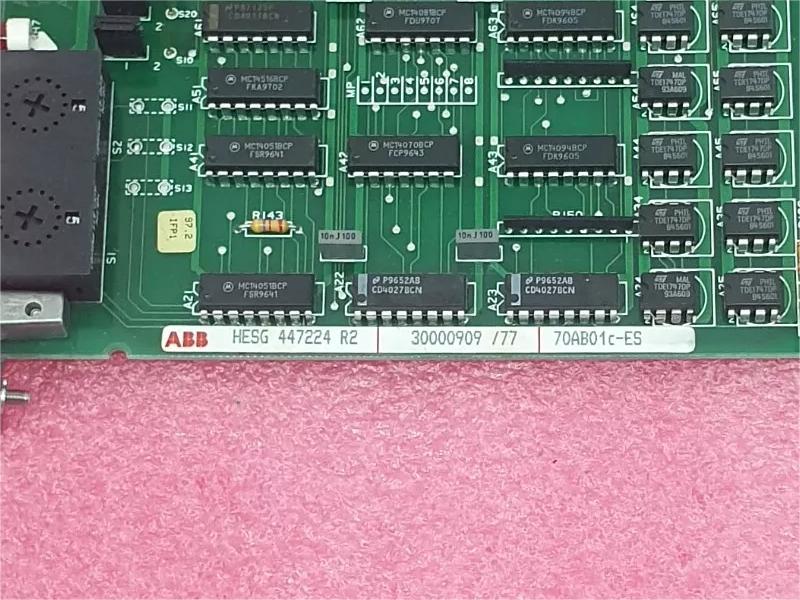

70AB01C-ES HESG447224R0002 Digital Output Module
The 70AB01C-ES is a Digital Output Module, manufactured and designed by ABB as part of the I/O Modules used in the Procontrol P13 system.
The core of the P13 digital output modules is the custom local bus UART and digital signal processing engine. The output module provides 16 internally sourced outputs for driving input cards, lamps and relays or normally open relay outputs. Using the front panel configuration port and the P13 Configurator software, the modules can be monitored and configured for different applications. A major step forward compared to the classic P13 output modules is the possibility to use the full local bus address range with every module. In addition, each channel can be simulated/forced directly from the P13 Configurator for easy commissioning and loop checks after maintenance.
Feature Highlights
• Flexible configuration possibilities for one-to-one replacements, retrofits and extensions
• Complete parametrization and configuration in software with the P13 Configurator tool; no need to set code switches and jumpers manually
• Support for disabling of output channel via configuration tool
• Monitoring the state of individual outputs on card level with the P13 Configurator tool
• Individual forcing of output channels with the P13 Configurator tool
• All modules can use the complete local bus address range (normal and special)
• State-of-the-art technology (DSP/FPGA-based) for low maintenance and outmost durability
• Configuration cables are available with serial (DB9)or USB plug
Technical Specifications
Manufacturer | ABB |
Part Number | 70AB01C-ES |
Ordering Information | HESG447224R0002 |
Product Catalog | Procontrol P13 system |
Description | Digital Output Module |
Voltage | 24 Vdc |
Current | 100 mA |
Dimensions | 20.3 cm x 15.2 cm x 2.5 cm |
Weight | 0.2 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
