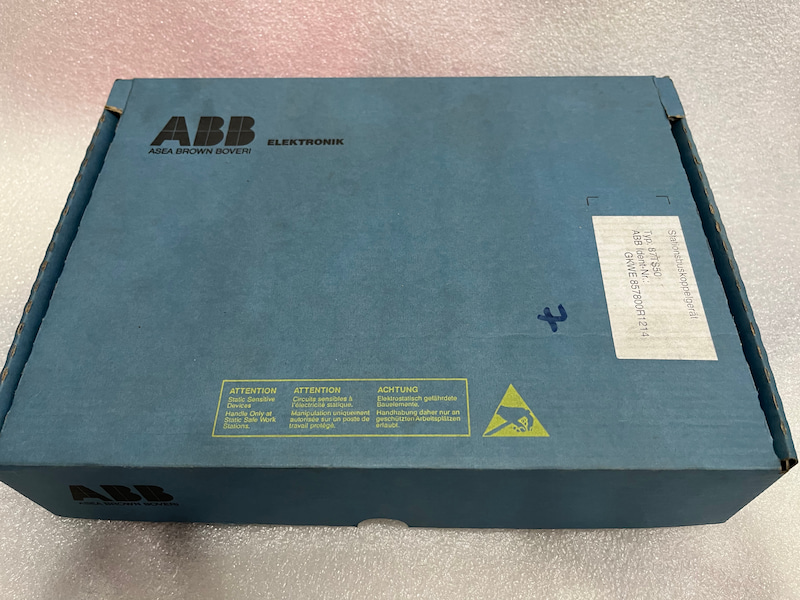

ABB 87TS50E-E GKWE857800R1214 Coupling Module

87TS50E-E GKWE857800R1214 Coupling Module

The module is also suitable for redundant-station arrangements. It may be operated in two modes:

- Redundant mode

- Partial-redundant mode

Features

This module can be plugged into any station of the PROCONTROL bus system. It uses a standard interface with the PROCONTROL station bus.

The telegrams received over the bus are checked by the module for error-free transmission based on their parity bits. Through its Ethernet interface, the module can receive or put out instructions and data, according to the TCP/IP protocol, to or from the CPS.

From the CPS, the 87TS50 module can exchange the following data with the entire PROCONTROL system:

- Listening-in on up to 16383 telegrams.

The listen-in address list is generated independently by the coupling module after having received a connect instruction from the CPS.

The coupling module is able to independently learn listenin addresses (e.g. of new modules plugged in).

As soon as they have been received from the PROCONTROL bus, the data telegrams are provided with the time stamp used on the module. The resolution valid for the time stamp is one millisecond.

All listened-in telegrams are subjected to receive monitoring. The quantity of messages of the listen-in telegrams can be adjusted by setting global thresholds and time-outs.

- Sending up to 800 send-location telegrams.

The address for sending is determined by the slot used for the module and by the specifications made by the CPS.

- Sending destination telegrams for writing into PROCONTROL module registers, for instance for command output.

The module requires redundant +24 V operating voltages USA and USB.

The operating voltages refer to reference conductor_Z.

On the module front, indicators signal the following conditions:

- ST Disturbance

- SG Module disturbance

- HLT Processor halt

- RUN Active

- MODE Operating status

For commissioning and service purposes, the module is equipped with a user interface (monitor) which can be used to call up all important information regarding telegram data and module-specific configurations.

The ambient temperature of the module can be read from register 202.
