For the best price on PDP800, please contact us and we will get back to you within 24 hours. Topteng Technology understands the importance of your needs and is committed to minimizing lead times.
Brand :

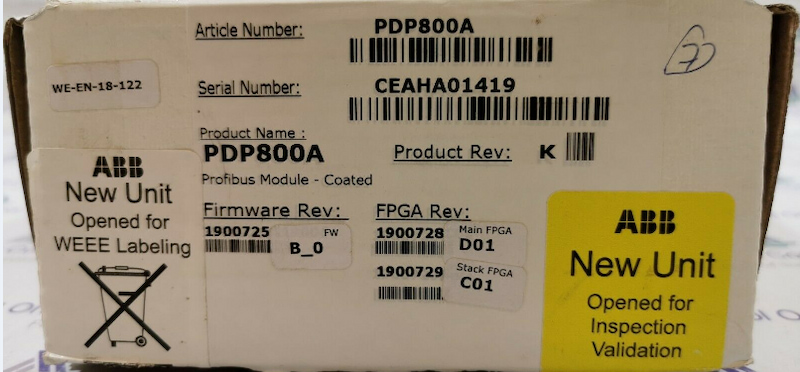

ABBPart number :
PDP800Description :
Profibus Interface ModuleOrigin :
LithuaniaCondition :
NewDimension :
124 mm x 186 mm x 127 mmWeight :
0.61 kgPayment :
Bank Transfer
ABB Ability™ Symphony® Plus

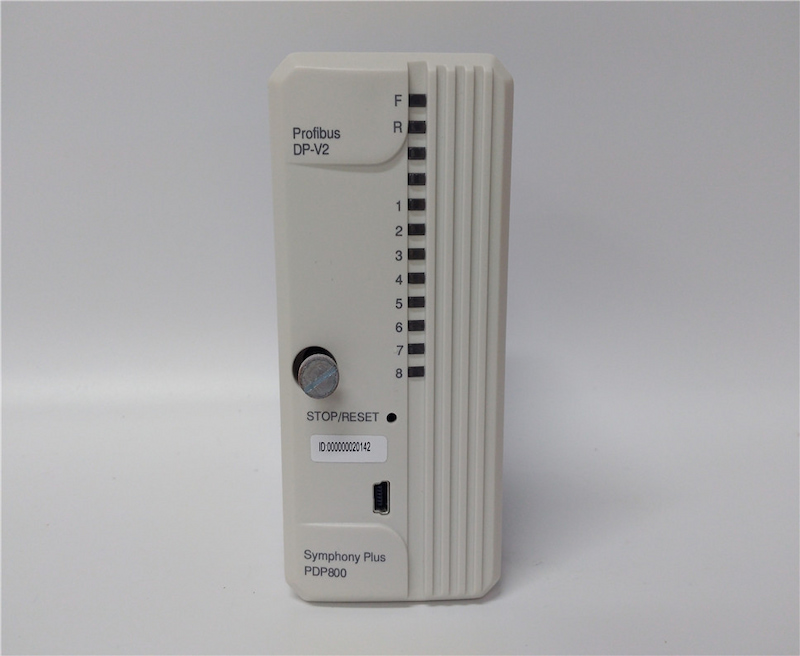

SD Series PROFIBUS Interface PDP800
ABB Ability Symphony Plus SD Series PROFIBUS interface module
PDP800 provides seamless integration of intelligent field devices into
Symphony Plus system via PROFIBUS protocol to reduce overall cost.
Highlights
Included in ABB Ability Symphony Plus is a comprehensive suite of standards-based control hardware and software that meets the requirements of total plant automation. SD Series PROFIBUS interface module PDP800 provides connection between the Symphony Plus controllers and PROFIBUS DP communication channels. This allows for easy integration of intelligent devices such as smart transmitters, actuators and intelligent electronic devices (IEDs). Each
device's resident information can then be used in control strategies and higher level applications.In addition to producing tighter and more reliable process control solutions, PDP800 PROFIBUS solutions lower installation costs by reducing wiring and system footprint. System costs are further reduced by using S+ Engineering to configure and maintain PROFIBUS networks and devices and their related control strategies.
PDP800 PROFIBUS Interface Module features include:
• Support module redundancy
• Support PROFIBUS DP line redundancy
• Supports PROFIBUS DP V0, V1, V2
• Supports PROFIBUS PA devices through DP/PA linking device
• Supports 1 msec time stamping of devices by PROFIBUS DP V2
• Supports electric and fiber optic media for PROFIBUS DP link
• Up to 12 Mbps rate of PROFIBUS DP link
• Up to 15 km by fiber optic PROFIBUS DP link
• Up to 125 slave devices
Technical Specifications
|
Processor
|
Industrial grade RISC type processor
|
|
Memory
|
128 MB memory,
4 MB ROM
|
|
Power requirements
|
24 VDC ± 10% at 150 mA; 3.6 W typical
|
|
HPC800 controller
|
Redundant 4 Mbps HN800
|
|
PROFIBUS
|
2 x redundant PROFIBUS DP 9-pin D-Sub connectors
|
|
Service port
|
1 mini-USB port, on PDP800 front plate
|
|
Capacity
|
Up to 125 slave devices
Supported protocols: DP-V0, DP-V1, DP-V2, PA
(through DP/PA linking device)
Supported baud rate: 9.6 k, 19.2 k, 93.75 k, 187.5 k,
500 k, 1.5 M, 3 M, 6 M, 12 M
Distance up to 15 km by fiber optic (using third-party hardware)
|
|
Ambient temperature
|
0 °C to 55 °C (32 °F to 131 °F). Tested according to IEC/
EN 60068-2-1, IEC/EN 60068-2-2, IEC/EN 60068-2-14
|
|
Dimensions
|
124 mm width, 186 mm height, 127 mm depth
(4.88 in. width, 7.32 in. height, 5 in. depth)
|
|
Weight
|
0.61 kg |
