For the best price on SPASO11, please contact us and we will get back to you within 24 hours. Topteng Technology understands the importance of your needs and is committed to minimizing lead times.
Brand :
ABBPart number :
SPASO11Description :
Analog Output ModuleOrigin :
USACondition :
NewDimension :
35.56 mm × 177.80 mm × 298.45 mmWeight :
0.7 kgPayment :
Bank Transfer
Overview

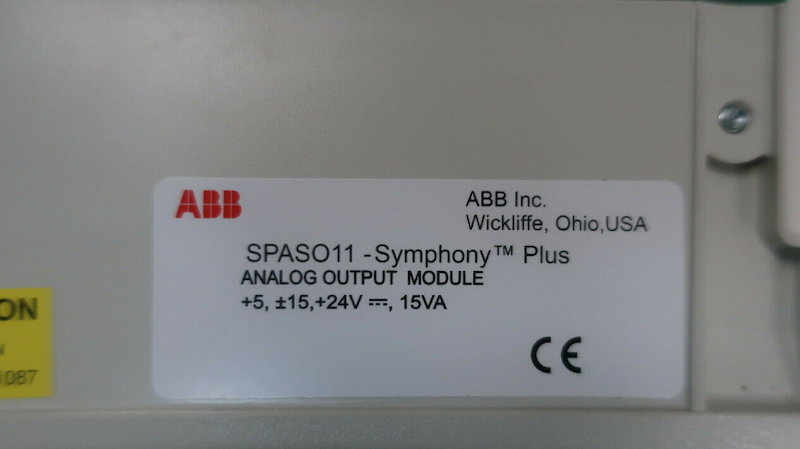

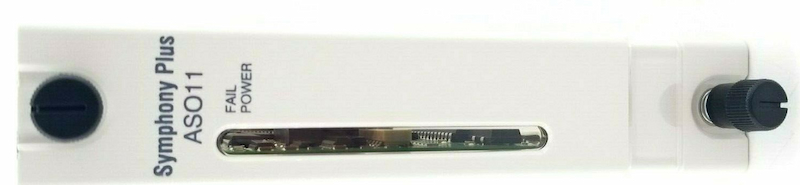

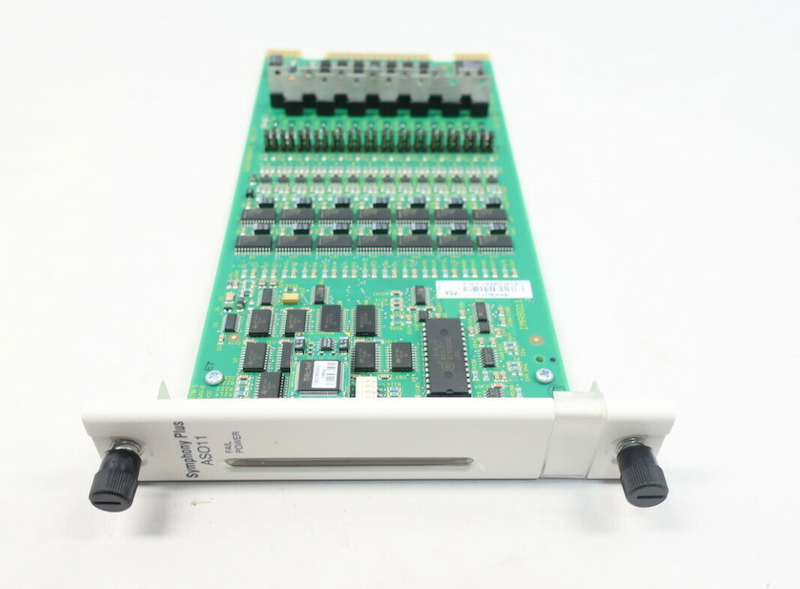

The SPASO11 provides 14 separate analog output signals that can be
used to control a process. Each channel has a 10-bit resolution and can be
individually programmed. Each output reads back the signal to the field to
ensure accurate operation and eliminate the need to calibrate outputs.
Technical Data
|
Power requirements
|
+ 5 VDC, ±5% at 250 mA typical
+15 VDC, ±5% at 100 mA typical
- 15 VDC, ±5% at 90 mA typical
+ 24 VDC, ±10% at 310 mA typical
|
|
Analog input channels
|
14 independently configured channels
|
|
Current
|
4 to 20 mA
|
|
Voltage
|
1 to 5 VDC
|
|
Output load (current)
|
750 Ω maximum
|
|
Output load (voltage)
|
22 kΩ minimum
|
|
Ambient temperature
|
0 °C to 70 °C (32 °F to 158 °F)
|
|
Dimensions
|
35.56 mm width, 177.80 mm height, 298.45 mm depth
(1.40 in. width, 7.00 in. height, 11.75 in. depth)
|
| Weight | 0.7 kg |
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS.
Payment : 100% advance payment bank wire transfer.
Returns : Quality problems can be replaced within 15 working days from the date of receipt of the product, repair services can be provided within 1 year.
Please contact us to get the product manual.
