Buy high quality and factory price of HIMA F6217 8-Channel Analog Input Module and other automation control system modules and spare parts at toptengplc.com. welcome to inquire!
Brand :
HimaPart number :
F6217Description :
8 Fold Analog Input ModuleOrigin :
GermanyCondition :
NewDimension :
20.3 cm x 12.7 cm x 2.5 cmWeight :
0.1 kgPayment :
Bank Transfer
F 6217: 8 fold analog input module, safety related
for current inputs 0/4...20 mA, voltage inputs 0...5/10 V,
with safety isolation
resolution 12 bits
tested according to AK6/SIL3
| Input voltage | 0...5.5 V |
| max. input voltage | 7.5 V |
| Input current | 0...22 mA (via shunt) |
| max. input current | 30 mA |
| R*: Shunt with | 250 Ohm; 0.05 %; 0.25 W; |
| current input | T<10 ppm/K; part-no: 00 0710251 |
|
Resolution
|
12 bit, 0 mV = 0 5.5 V = 4095 |
| Measurand up date | 50 ms |
| Safety time | < 450 ms |
| Input resistance | 100 kOhm |
| Time const. inp. filter | appr. 10 ms |
| Basic error | 0.1 % at 25 °C |
| Operating error | 0.3 % at 0...+60 °C |
| Error limit related | |
| on safety | 1 % |
| Electric strength | 200 V against GND |
| Space requirement | 4 TE |
| Operating data | 5 V DC: 80 mA, 24 V DC: 50 mA |

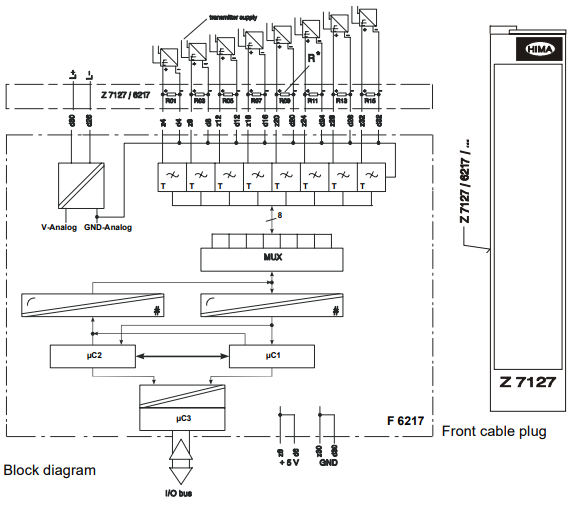

The module contains a redundant, safety related processor system. Because of this, all the tests are executed directly on the module. The main test routines are:
· Linearity of the AD converters
· Cross talking between the 8 input channels
· Function of the input filters
· Function of the IO bus communication
· Self tests of the microcontrollers
· Tests of the memories
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
