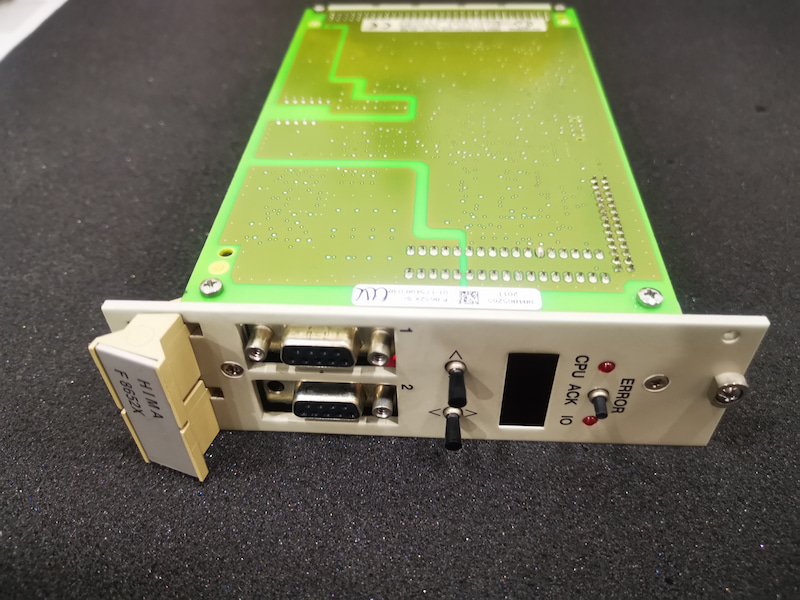

Hima F8652X Central Module

F 8652X Central Module For H41q system

Structure of the central module F 8652X:

· two clock-synchronised micro processors

· each mikroprocessor with an own memory, one processor operates with real data and program and the other one with inverted data and program

· testable hardware comparer for all the external accesses of both micro processors, in case of a fault the watch dog will be set to the safe status and the status of the processor is announced

· Flash-EPROMs of the program memory for the operating system and the user's program usable for min. 100.000 writing cycles

· Data memory in sRAM

· Multiplexer to connect I/O bus, DPR and redundant CU (not used in the H41q-MS system)

· Battery backup of the sRAMs via batteries on the central module with monitoring and on the bus board

· 2 interfaces RS 485 with galvanic isolation. Transm. rate: max. 57600 bps. Set to 9600 bps and to 57600 bps by switch, or setting also of other transm. rates by software (the software values have priority)

· Diagnostic display and 2 LEDs for information out of the system, I/O level and user's program

· Dual Port RAM for fast memory access to the second central module (not used in the H41q-MS system)

· hardware clock, battery backed

· I/O bus logic and connection to the input-/output modules

· Fail-safe watchdog

· power supply monitoring, testable (5 V system voltage)

· Battery monitoring

Technical Specifications
