F7553 - Coupling module is available in stock and ready for ship.
Brand :
HimaPart number :
F7553Description :
Coupling ModuleOrigin :
GermanyCondition :
NewDimension :
20.3 cm x 12.7 cm x 2.5 cmWeight :
0.1 kgPayment :
Bank Transfer
F 7553: Coupling Module
in the assembly kit B 9302, with switch-off of the watchdog signal,
for PES H51q

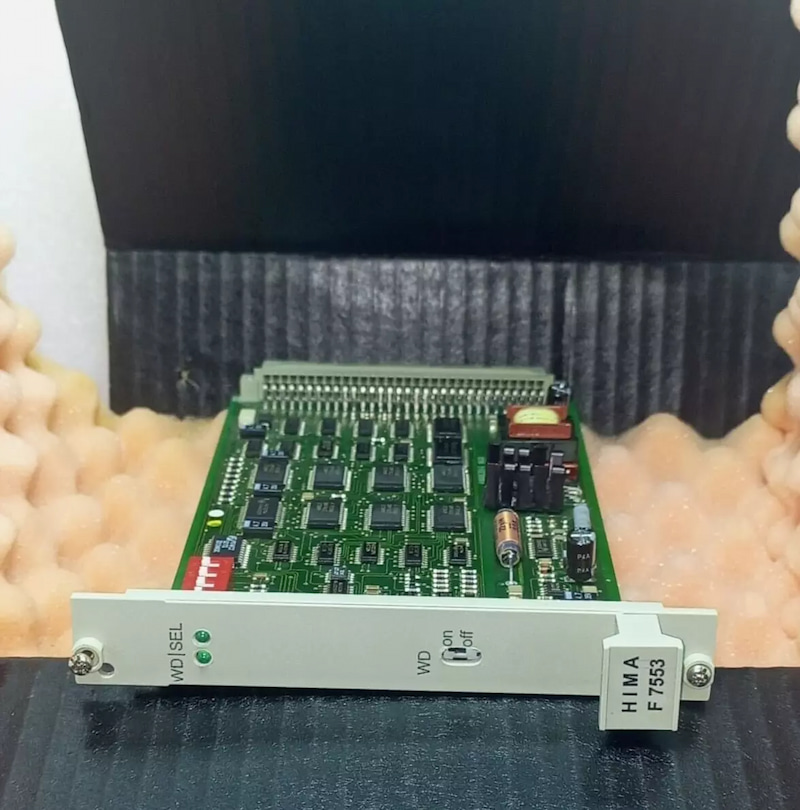

LED WD on the front plate shows the existing fail-safe watchdog signal. By the second LED SEL the access to the IO modules of the appertaining IO subrack is signalled. Via the shrouded switch WD the WD signal can be switched off to change the coupling module F 7553 without releasing a system emergency-off.

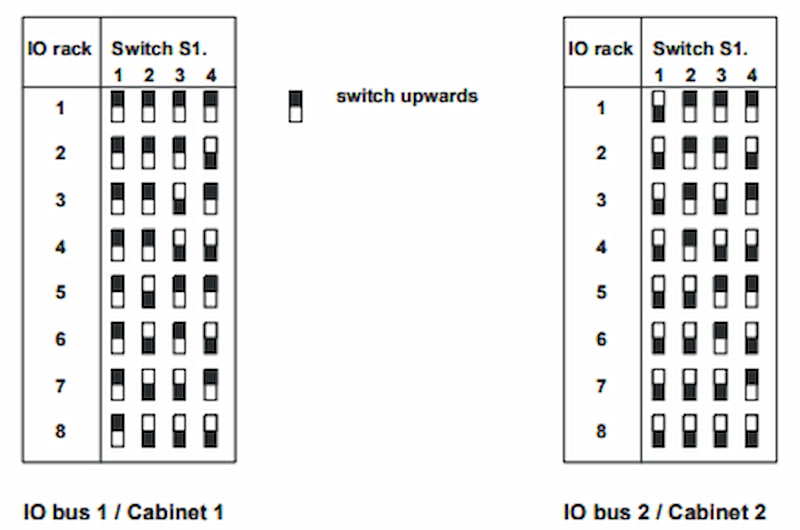

The coding switches S1.1 ... S1.4 serves the setting of the numbers for the IO bus (cabinet) and sub rack:
The coupling module consists of the monitoring of the 5 V supply of the IO subrack and transmits a corresponding status signal to the central module.
The module is automatically tested during operation.
Space requirement 4 TE
Operating data 5 V DC: 600 mA
24 V DC: 750 mA
Technical Specifications
| Manufacturer | Hima |
| Part Number | F 7553 |
| Ordering Information | F 7553 |
| Product Catalog | PES H51q |
| Description | Coupling Module |
| Voltage | 24 Vdc |
| Current | 750 mA |
| Dimension | 20.3 cm x 12.7 cm x 2.5 cm |
| Weight | 0.1 kg |
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS.
Payment : 100% advance payment bank wire transfer.
Returns : Quality problems can be replaced within 15 working days from the date of receipt of the product, repair services can be provided within 1 year.
Please contact us to get the product manual.
