The X-AI3201 is 32-channel safety analog input module for HIMax safety control systems to collect 4-20mA field sensor signals.
Brand :
HIMAPart number :
X-AI3201 985210213Description :
Analog Input ModuleOrigin :
GermanyCondition :
NewDimension :
20.3 cm x 12.7 cm x 2.5 cmWeight :
0.2 kgPayment :
Bank Transfer

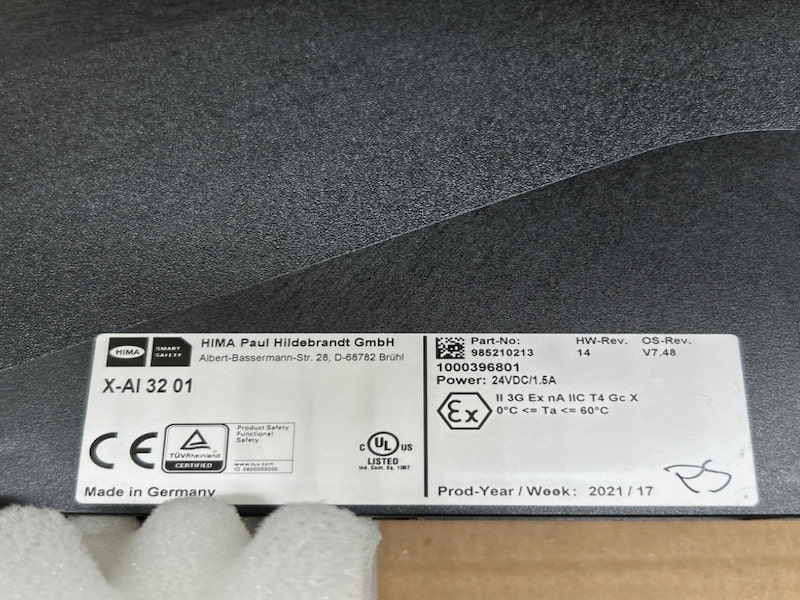

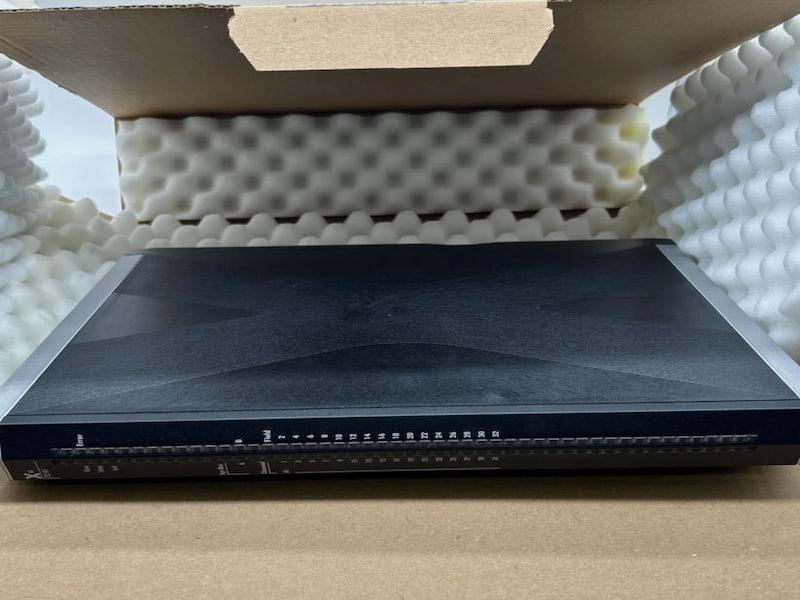

HIMA X-AI3201 985210213 Analog Input Module
Description
X-AI3201 (Material Number 985210213) is a 32-channel high-density analog input module specifically designed for safety instrumented systems. It is compatible with the base of the safety controller rack and is used to collect 4-20mA standard current signals from on-site pressure, level, and temperature transmitters. Each channel is equipped with a short-circuit protection transmitter power supply, converting analog signals with high precision into digital signals. These signals are then transmitted through the system safety bus to the controller for safe logic operations.
The module features full-channel independent electrical isolation and a complete fault diagnosis mechanism. It can promptly identify circuit breakage, short circuits, and over-range abnormalities, meeting the SIL3 safety level standard. It supports hot-swappable installation on the rack while the power is on, eliminating the need to stop the process monitoring during replacement. It is widely used in key devices of industries such as chemical, oil and gas, and thermal power for safety interlock systems.
Features
32-channel analog current input, compatible with 0/4-20mA transducer signals, supports HART communication
Electrical isolation between channels and system bus, resistant to on-site electromagnetic interference
Single-channel short-circuit protection and power supply output, equipped with diagnostic functions for open circuits and over-range channels
SIL3 safety certification, compliant with IEC 61508 functional safety standards
High-precision analog-to-digital conversion, sampling rate configurable via software, with small measurement stability error
Rack-mounted hot-swappable design, allowing for online replacement without affecting the operation of the entire safety system
24VDC industrial standard power supply, stable operation within a temperature range of 0 to 60℃
Standardized backplane bus communication, compatible with the same series of safety controllers for integrated use
Technical Specifications
| Manufacturer | Hima |
| Part Number | X-AI3201 |
| Ordering Information | 985210213 |
| Product Catalog | HIMax Safety System |
| Description | Analog Input Module |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 20.3 cm x 12.7 cm x 2.5 cm |
| Weight | 0.2 kg |
